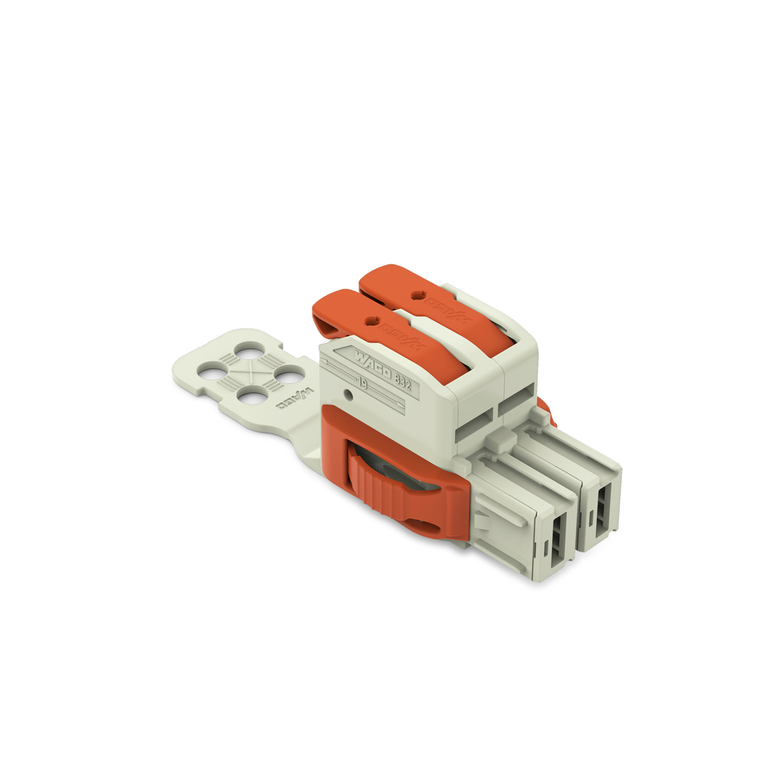

WAGO 832-1102/312-000
Wago
$12.04
1-conductor female connector; lever; Push-in CAGE CLAMP; 16 mm²; Pin spacing 10.16 mm; 2-pole; 100% protected against mismating; Lateral locking levers; Strain relief plate; Silver-plated contacts; 16,00 mm²; light gray.
The WAGO component equivalent to 8321102312000 is a specific part used in electrical and automation systems. It is designed to provide reliable and efficient connectivity solutions, ensuring secure and stable connections in various applications. This component is known for its high quality, durability, and compatibility with other WAGO products, making it a preferred choice for professionals in the industry.
- actuation type:
- Lever
- approvals per:
- CSA
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Light gray
- color of actuator:
- Orange
- conductor entry direction to mating direction:
- 0
- connection technology:
- Push-in CAGE CLAMP
- connector connection type:
- For conductor
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Silver-plated
- contact type pluggable connector:
- Female connector/socket
- country of origin sales organisation germany:
- DE
- depth:
- 89.8 mm / 3.535 inch
- fine stranded conductor:
- 0.75 25 mm / 18 4 AWG
- fine stranded conductor with insulated ferrule:
- 0.75 16 mm
- fine stranded conductor with uninsulated ferrule:
- 0.75 16 mm
- fire load:
- 0.000 MJ
- flammability class per ul94:
- V0
- height:
- 29.1 mm / 1.146 inch
- insulation material:
- Polybutylene terephthalate (PBT)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +120 C
- locking of plug in connection:
- Lateral locking lever
- material group:
- I
- material of the additional spring for socket contact:
- Chrome nickel spring steel (CrNi)
- mismating protection:
- Yes
- nominal voltage ii 2:
- 1000 V
- nominal voltage iii 3:
- 1000 V
- packaging type:
- Box
- pin spacing:
- 10.16 mm / 0.4 inch
- pole no:
- 2
- rated current:
- 76 A
- rated current csa use group b:
- 66 A
- rated current csa use group c:
- 66 A
- rated current ul 1977:
- 85 A
- rated current ul use group b:
- 66 A
- rated current ul use group c:
- 66 A
- rated surge voltage ii 2:
- 8 kV
- rated surge voltage iii 2:
- 8 kV
- rated surge voltage iii 3:
- 8 kV
- rated voltage csa use group b:
- 600 V
- rated voltage csa use group c:
- 600 V
- rated voltage iii 2:
- 1000 V
- rated voltage ul 1977:
- 600 V
- rated voltage ul use group b:
- 600 V
- rated voltage ul use group c:
- 600 V
- ratings per:
- IEC/EN 60664-1
- safety information 1:
- The MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure
- solid conductor:
- 0.75 16 mm / 18 4 AWG
- strain relief:
- Strain relief plate
- strip length:
- 18 20 mm / 0.71 0.79 inch
- weight:
- 31.668 g
- weight of insulation material:
- 11.6
- width:
- 33.62 mm / 1.324 inch
