Wago

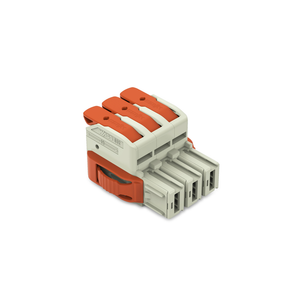

WAGO 832-1103/000-9037

SKU:

832-1103/000-9037

UPC:

MPN:

832-1103/000-9037

Condition:

New

actuation type:

Lever

actuator color:

Orange

anti rotation protection:

Yes

approvals per:

CSA

clamping spring material:

Chrome-nickel spring steel (CrNi)

color:

Light gray

conductor entry direction to mating direction:

0 ƒƒ‚°

connection technology:

Push-in CAGE CLAMP®

CONNECTOR CONNECTION TYPE:

For conductor

CONTACT MATERIAL:

Electrolytic copper (ECu)

CONTACT PLATING:

Silver

CONTACT TYPE PLUGGABLE CONNECTOR:

Female connector/socket

COUNTRY OF ORIGIN VKORG GERMANY:

DE

CUSTOMS TARIFF NUMBER VKORG GERMANY:

85366990990

DEPTH:

49.8 mm / 1.961 inches

FINE STRANDED CONDUCTOR:

0.75 ƒƒ¢€¦ 25 mmƒƒ‚² / 18 ƒƒ¢€¦ 4 AWG

FINE STRANDED CONDUCTOR WITH INSULATED FERRULE:

0.75 ƒƒ¢€¦ 16 mmƒƒ‚²

FINE STRANDED CONDUCTOR WITH UNINSULATED FERRULE:

0.75 ƒƒ¢€¦ 16 mmƒƒ‚²

FIRE LOAD:

0.000 MJ

FLAMMABILITY CLASS PER UL94:

V0

HEIGHT:

29.1 mm / 1.146 inches

INSULATION MATERIAL:

Polybutylene terephthalate (PBT)

LEGEND RATINGS:

(III / 2) ƒƒ¢‰™ Overvoltage category III / Pollution degree 2

LIMIT TEMPERATURE RANGE:

-60 ƒƒ¢€¦ +120 ƒƒ‚°C

LOCKING OF PLUG IN CONNECTION:

None

MATERIAL GROUP:

I

MATERIAL OF THE ADDITIONAL SPRING FOR SOCKET CONTACT:

Chrome-nickel spring steel (CrNi)

MEASUREMENT ERROR DEVIATION MAX FROM THE UPPER RANGE VALUE:

MEASUREMENT ERROR DEVIATION MAX OF THE UPPER RANGE VALUE 2=

MISMATING PROTECTION:

YesMOUNTING NOTE=

NOMINAL VOLTAGE II 2:

1000 V

NOMINAL VOLTAGE III 3:

1000 V

NOTE MATERIAL DATA:

Information on material data can be found here

PACKAGING TYPE:

Box

PIN SPACING:

10.16 mm / 0.4 inches

PLUGGING WITHOUT LOSS OF PIN SPACING:

No

POLE NUMBER:

3

PROCESSING TEMPERATURE:

-35 ƒƒ¢€¦ +60 ƒƒ‚°C

PRODUCT GROUP CODE:

3

RATED CURRENT:

76 A

RATED CURRENT CSA USE GROUP B:

66 A

RATED CURRENT CSA USE GROUP C:

66 A

RATED CURRENT UL 1977:

85 A

RATED CURRENT UL USE GROUP B:

66 A

RATED CURRENT UL USE GROUP C:

66 A

RATED IMPULSE VOLTAGE III 2:

8 kV

RATED IMPULSE VOLTAGE III 3:

8 kV

RATED SURGE VOLTAGE II 2:

8 kV

RATED VOLTAGE CSA USE GROUP B:

600 V

RATED VOLTAGE CSA USE GROUP C:

600 V

RATED VOLTAGE III 2:

1000 V

RATED VOLTAGE UL 1977:

600 V

RATED VOLTAGE UL USE GROUP B:

600 V

RATED VOLTAGE UL USE GROUP C:

600 V

RATINGS PER:

IEC/EN 60664-1

SAFETY INFORMATION 1:

The MCS ƒƒ¢€“ MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these conne

SOLID CONDUCTOR:

0.75 ƒƒ¢€¦ 16 mmƒƒ‚² / 18 ƒƒ¢€¦ 4 AWG

STRIP LENGTH:

18 ƒƒ¢€¦ 20 mm / 0.71 ƒƒ¢€¦ 0.79 inches

VARIABLE CODING:

Yes

VARIANTS:

Other pole numbers || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/.

WEIGHT:

40.577 g

WIDTH:

31.78 mm / 1.251 inches
