Wago

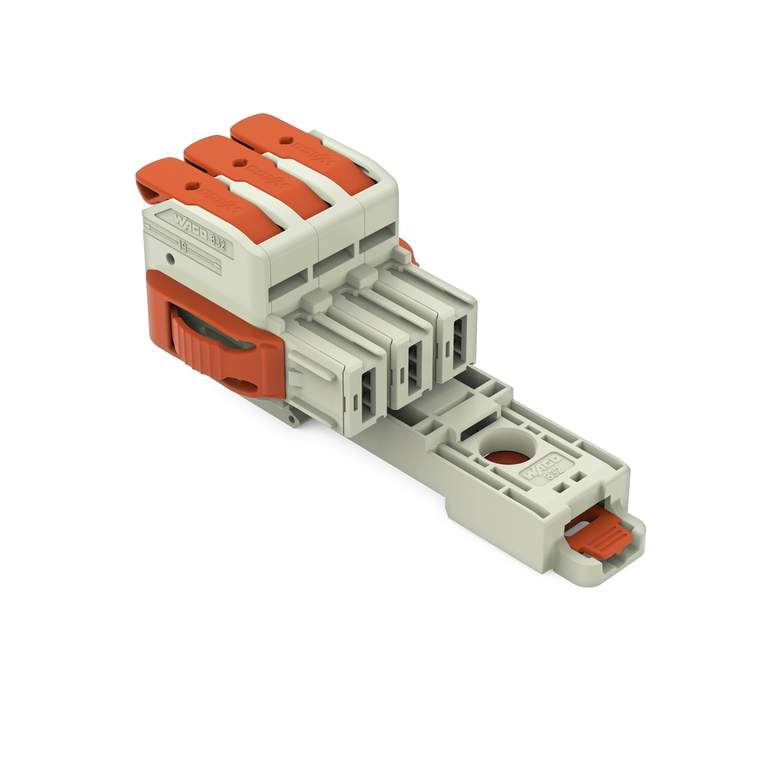

WAGO 832-1103/037-000/306-000 Pack of 5

SKU:

832-1103/037-000/306-000

UPC:

MPN:

832-1103/037-000/306-000

Condition:

New

actuation type:

Lever

approvals per:

CSA

clamping spring material:

Chrome nickel spring steel (CrNi)

color:

Light gray

color of actuator:

Orange

conductor entry direction to mating direction:

0

connection technology:

Push-in CAGE CLAMP«

connector connection type:

For conductor

contact material:

Electrolytic copper (ECu)

contact plating:

Silver-plated

contact type pluggable connector:

Female connector/socket

country of origin sales organisation germany:

DE

depth:

92.9 mm / 3.657 inch

fine stranded conductor:

0.75 ƒƒ‡ª 25 mm / 18 ƒƒ‡ª 4 AWG

fine stranded conductor with insulated ferrule:

0.75 ƒƒ‡ª 16 mm

fine stranded conductor with uninsulated ferrule:

0.75 ƒƒ‡ª 16 mm

fire load:

0.000 MJ

flammability class per ul94:

V0

height:

42.5 mm / 1.673 inch

insulation material:

Polybutylene terephthalate (PBT)

legend ratings:

(III / 2) ƒƒ«ƒƒ– Overvoltage category III / Pollution degree 2

limit temperature range:

-60 ƒƒ‡ª +120 C

locking of plug in connection:

Lateral locking lever

material group:

I

material of the additional spring for socket contact:

Chrome nickel spring steel (CrNi)

mismating protection:

Yes

mounting type:

DIN-35 rail || Panel mounting

nominal voltage ii 2:

1000 V

nominal voltage iii 3:

1000 V

pin spacing:

10.16 mm / 0.4 inch

pole no:

3

rated current:

76 A

rated current csa use group b:

66 A

rated current csa use group c:

66 A

rated current ul 1977:

85 A

rated current ul use group b:

66 A

rated current ul use group c:

66 A

rated surge voltage ii 2:

8 kV

rated surge voltage iii 2:

8 kV

rated surge voltage iii 3:

8 kV

rated voltage csa use group b:

600 V

rated voltage csa use group c:

600 V

rated voltage iii 2:

1000 V

rated voltage ul 1977:

600 V

rated voltage ul use group b:

600 V

rated voltage ul use group c:

600 V

ratings per:

IEC/EN 60664-1

safety information 1:

The MCS ƒƒ‡ƒƒ´ MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure

solid conductor:

0.75 ƒƒ‡ª 16 mm / 18 ƒƒ‡ª 4 AWG

strip length:

18 ƒƒ‡ª 20 mm / 0.71 ƒƒ‡ª 0.79 inch

weight:

52.467 g

width:

43.78 mm / 1.724 inch
