Wago

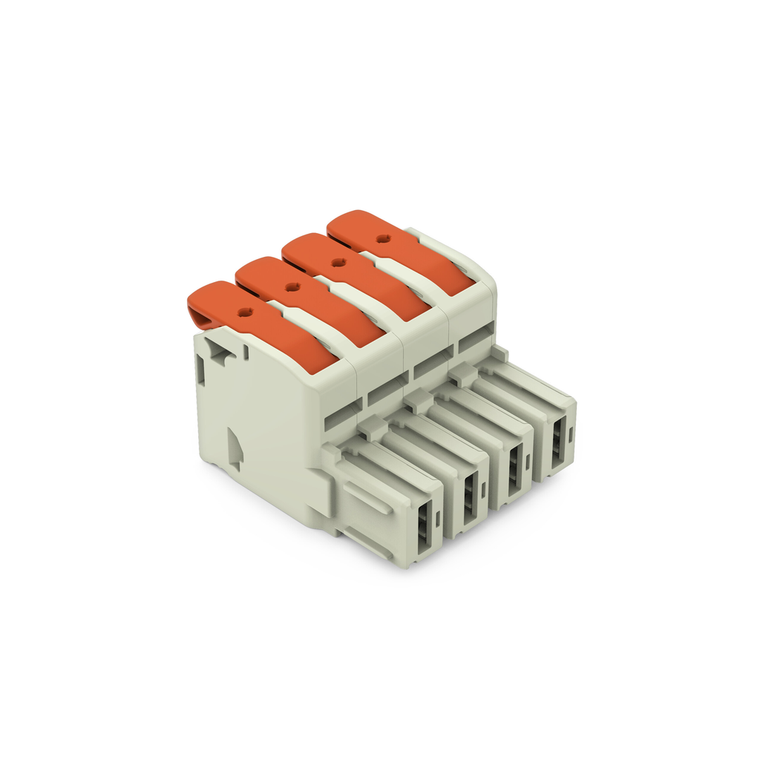

WAGO 832-1104

SKU:

832-1104

UPC:

MPN:

832-1104

Condition:

New

Availability:

In our warehouse: 10

actuation type:

Lever

approvals per:

CSA

clamping spring material:

Chrome nickel spring steel (CrNi)

color:

Light gray

color of actuator:

Orange

conductor entry direction to mating direction:

0

connection technology:

Push-in CAGE CLAMP

connector connection type:

For conductor

contact material:

Electrolytic copper (ECu)

contact plating:

Silver-plated

contact type pluggable connector:

Female connector/socket

country of origin sales organisation germany:

DE

depth:

49.8 mm / 1.961 inch

fine stranded conductor:

0.75 25 mm / 18 4 AWG

fine stranded conductor with insulated ferrule:

0.75 16 mm

fine stranded conductor with uninsulated ferrule:

0.75 16 mm

fire load:

0.000 MJ

flammability class per ul94:

V0

height:

29.1 mm / 1.146 inch

insulation material:

Polybutylene terephthalate (PBT)

legend ratings:

(III / 2) Overvoltage category III / Pollution degree 2

limit temperature range:

-60 +120 C

locking of plug in connection:

Without

material group:

I

material of the additional spring for socket contact:

Chrome nickel spring steel (CrNi)

mismating protection:

Yes

nominal voltage ii 2:

1000 V

nominal voltage iii 3:

1000 V

packaging type:

Box

pin spacing:

10.16 mm / 0.4 inch

pole no:

4

rated current:

76 A

rated current csa use group b:

66 A

rated current csa use group c:

66 A

rated current ul 1977:

85 A

rated current ul use group b:

66 A

rated current ul use group c:

66 A

rated surge voltage ii 2:

8 kV

rated surge voltage iii 2:

8 kV

rated surge voltage iii 3:

8 kV

rated voltage csa use group b:

600 V

rated voltage csa use group c:

600 V

rated voltage iii 2:

1000 V

rated voltage ul 1977:

600 V

rated voltage ul use group b:

600 V

rated voltage ul use group c:

600 V

ratings per:

IEC/EN 60664-1

safety information 1:

The MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure

solid conductor:

0.75 16 mm / 18 4 AWG

strip length:

18 20 mm / 0.71 0.79 inch

weight:

53.696 g

width:

41.94 mm / 1.651 inch
