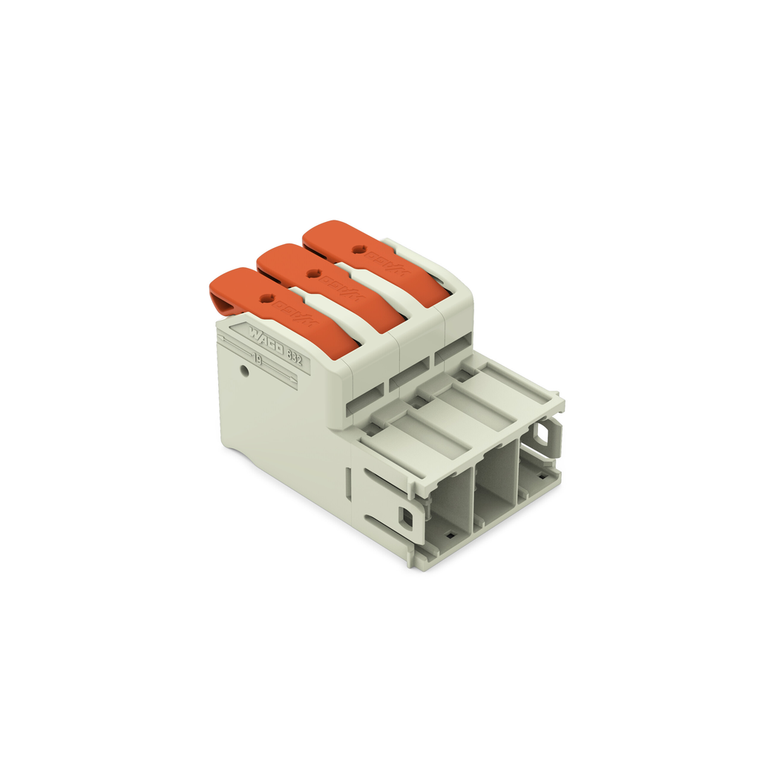

1-conductor male connector; lever; Push-in CAGE CLAMP; 16 mm²; Pin spacing 10.16 mm; 3-pole; 100% protected against mismating; Silver-plated contacts; direct marking; 16,00 mm²; light gray.
The WAGO component equivalent to 83212030009034 is a specific part used in electrical and automation systems. It is designed to provide reliable and efficient connectivity solutions, ensuring secure and stable connections in various applications. This component is known for its high quality, durability, and compatibility with other WAGO products, making it a preferred choice for professionals in the industry.
- actuation type:
- Lever
- actuator color:
- Orange
- anti rotation protection:
- Yes
- approvals per:
- CSA
- clamping spring material:
- Chrome-nickel spring steel (CrNi)
- color:
- Light gray
- conductor entry direction to mating direction:
- 0 °
- connection technology:
- Push-in CAGE CLAMP®
- CONNECTOR CONNECTION TYPE:
- For conductor
- CONTACT MATERIAL:
- Electrolytic copper (ECu)
- CONTACT PLATING:
- Silver
- CONTACT TYPE PLUGGABLE CONNECTOR:
- Male connector/plug
- COUNTRY OF ORIGIN VKORG GERMANY:
- DE
- CUSTOMS TARIFF NUMBER VKORG GERMANY:
- 85366990990
- DEPTH:
- 50.6 mm / 1.992 inches
- FINE STRANDED CONDUCTOR:
- 0.75 ¢¦ 25 mm² / 18 ¢¦ 4 AWG
- FINE STRANDED CONDUCTOR WITH INSULATED FERRULE:
- 0.75 ¢¦ 16 mm²
- FINE STRANDED CONDUCTOR WITH UNINSULATED FERRULE:
- 0.75 ¢¦ 16 mm²
- FIRE LOAD:
- 0.000 MJ
- FLAMMABILITY CLASS PER UL94:
- V0
- HEIGHT:
- 29.1 mm / 1.146 inches
- INSULATION MATERIAL:
- Polybutylene terephthalate (PBT)
- LEGEND RATINGS:
- (III / 2) ¢ Overvoltage category III / Pollution degree 2
- LIMIT TEMPERATURE RANGE:
- -60 ¢¦ +120 °C
- LOCKING OF PLUG IN CONNECTION:
- None
- MATERIAL GROUP:
- I
- MEASUREMENT ERROR DEVIATION MAX FROM THE UPPER RANGE VALUE:
- MEASUREMENT ERROR DEVIATION MAX OF THE UPPER RANGE VALUE 2=
- MISMATING PROTECTION:
- YesMOUNTING NOTE=
- NOMINAL VOLTAGE II 2:
- 1000 V
- NOMINAL VOLTAGE III 3:
- 1000 V
- NOTE MATERIAL DATA:
- Information on material data can be found here
- PACKAGING TYPE:
- Box
- PIN SPACING:
- 10.16 mm / 0.4 inches
- PLUGGING WITHOUT LOSS OF PIN SPACING:
- No
- POLE NUMBER:
- 3
- PROCESSING TEMPERATURE:
- -35 ¢¦ +60 °C
- PRODUCT GROUP CODE:
- 3
- RATED CURRENT:
- 76 A
- RATED CURRENT CSA USE GROUP B:
- 66 A
- RATED CURRENT CSA USE GROUP C:
- 66 A
- RATED CURRENT UL 1977:
- 85 A
- RATED CURRENT UL USE GROUP B:
- 66 A
- RATED CURRENT UL USE GROUP C:
- 66 A
- RATED IMPULSE VOLTAGE III 2:
- 8 kV
- RATED IMPULSE VOLTAGE III 3:
- 8 kV
- RATED SURGE VOLTAGE II 2:
- 8 kV
- RATED VOLTAGE CSA USE GROUP B:
- 600 V
- RATED VOLTAGE CSA USE GROUP C:
- 600 V
- RATED VOLTAGE III 2:
- 1000 V
- RATED VOLTAGE UL 1977:
- 600 V
- RATED VOLTAGE UL USE GROUP B:
- 600 V
- RATED VOLTAGE UL USE GROUP C:
- 600 V
- RATINGS PER:
- IEC/EN 60664-1
- SAFETY INFORMATION 1:
- The MCS ¢ MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these conne
- SOLID CONDUCTOR:
- 0.75 ¢¦ 16 mm² / 18 ¢¦ 4 AWG
- STRIP LENGTH:
- 18 ¢¦ 20 mm / 0.71 ¢¦ 0.79 inches
- VARIABLE CODING:
- Yes
- VARIANTS:
- Other pole numbers || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/.
- WEIGHT:
- 37.407 g
- WIDTH:
- 31.78 mm / 1.251 inches
