(III / 2) Overvoltage category III / Pollution degree 2
limit temperature range:
-60 +120 C
locking of plug in connection:
Without
material group:
I
mating direction to the pcb:
90
mismating protection:
Yes
nominal voltage ii 2:
1000 V
nominal voltage iii 3:
800 V
number of solder pins per potential:
3
packaging type:
Box
pcb contact:
THT
pin spacing:
10.16 mm / 0.4 inch
pole no:
4
rated current:
76 A
rated current csa use group b:
66 A
rated current csa use group c:
66 A
rated current csa use group d:
0.208333333333333
rated current ul 1977:
85 A
rated current ul use group b:
66 A
rated current ul use group c:
66 A
rated current ul use group d:
0.208333333333333
rated surge voltage ii 2:
8 kV
rated surge voltage iii 2:
8 kV
rated surge voltage iii 3:
8 kV
rated voltage csa use group b:
300 V
rated voltage csa use group c:
300 V
rated voltage csa use group d:
600 V
rated voltage iii 2:
1000 V
rated voltage ul 1977:
600 V
rated voltage ul use group b:
300 V
rated voltage ul use group c:
300 V
rated voltage ul use group d:
600 V
ratings per:
IEC/EN 60664-1
safety information 1:
The MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure

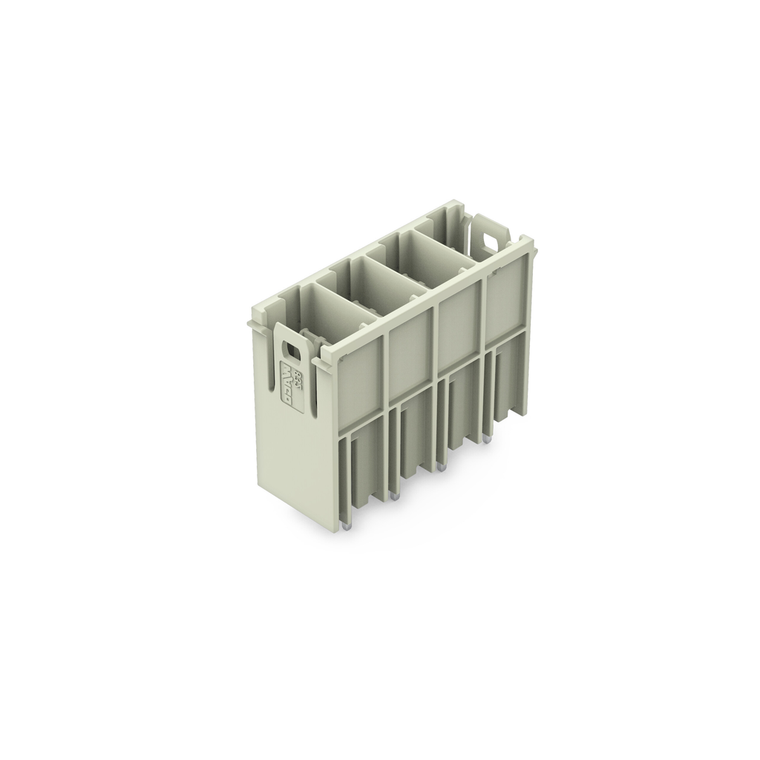

THT male header; 1.0 x 1.2 mm solder pin; straight; 100% protected against mismating; Pin spacing 7.62 mm; 4-pole Male headers may be mounted horizontally...
