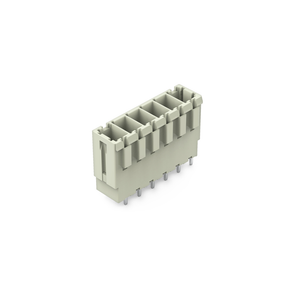

THT male header; 1.2 x 1.2 mm solder pin; straight (90° to PCB); Pin spacing 10.16 mm; 6-pole.
The WAGO component equivalent to 8323606 is a specific part used in electrical and automation systems. It is designed to provide reliable and efficient connectivity solutions, ensuring secure and stable connections in various applications. This component is known for its high quality, durability, and ease of installation, making it a preferred choice for professionals in the industry. It meets stringent standards and specifications, ensuring optimal performance and safety in electrical circuits.
- approvals per:
- CSA
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Light gray
- connector connection type:
- For PCB
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Silver-plated
- contact type pluggable connector:
- Male connector/plug
- country of origin sales organisation germany:
- DE
- depth:
- 16.5 mm / 0.65 inch
- drilled hole diameter with tolerance:
- 1.7 (+0.1) mm
- fire load:
- 0.000 MJ
- flammability class per ul94:
- V0
- height:
- 36 mm / 1.417 inch
- height from the surface:
- 32 mm / 1.26 inch
- insulation material:
- Polybutylene terephthalate (PBT)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +120 C
- locking of plug in connection:
- Without
- material group:
- I
- mating direction to the pcb:
- 90
- mismating protection:
- Yes
- nominal voltage ii 2:
- 1000 V
- nominal voltage iii 3:
- 800 V
- number of solder pins per potential:
- 3
- packaging type:
- Box
- pcb contact:
- THT
- pin spacing:
- 10.16 mm / 0.4 inch
- pole no:
- 6
- rated current:
- 76 A
- rated current csa use group b:
- 66 A
- rated current csa use group c:
- 66 A
- rated current csa use group d:
- 0.208333333333333
- rated current ul 1977:
- 85 A
- rated current ul use group b:
- 66 A
- rated current ul use group c:
- 66 A
- rated current ul use group d:
- 0.208333333333333
- rated surge voltage ii 2:
- 8 kV
- rated surge voltage iii 2:
- 8 kV
- rated surge voltage iii 3:
- 8 kV
- rated voltage csa use group b:
- 300 V
- rated voltage csa use group c:
- 300 V
- rated voltage csa use group d:
- 600 V
- rated voltage iii 2:
- 1000 V
- rated voltage ul 1977:
- 600 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group c:
- 300 V
- rated voltage ul use group d:
- 600 V
- ratings per:
- IEC/EN 60664-1
- safety information 1:
- The MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure
- solder pin arrangement:
- Over the entire male connector (in-line)
- solder pin dimensions:
- 1.2 x 1.2 mm
- solder pin length:
- 4 mm
- weight:
- 31.736 g
- width:
- 62.26 mm / 2.451 inch
