Wago

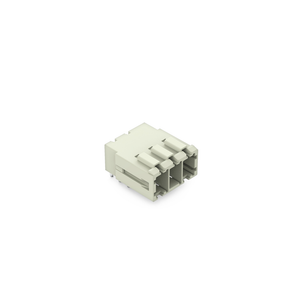

WAGO 832-3623

SKU:

832-3623

UPC:

MPN:

832-3623

Condition:

New

approvals per:

UL 1059

clamping spring material:

Chrome nickel spring steel (CrNi)

color:

Light gray

connector connection type:

For PCB

contact material:

Electrolytic copper (ECu)

contact plating:

Silver-plated

contact type pluggable connector:

Male connector/plug

country of origin sales organisation germany:

DE

depth:

32 mm / 1.26 inch

drilled hole diameter with tolerance:

1.7 (+0.1) mm

fire load:

0.000 MJ

flammability class per ul94:

V0

height:

20.5 mm / 0.807 inch

height from the surface:

16.5 mm / 0.65 inch

insulation material:

Polybutylene terephthalate (PBT)

legend ratings:

(III / 2) Overvoltage category III / Pollution degree 2

limit temperature range:

-60 +120 C

locking of plug in connection:

Without

material group:

I

mating direction to the pcb:

0

mismating protection:

Yes

nominal voltage ii 2:

1000 V

nominal voltage iii 3:

800 V

number of solder pins per potential:

3

packaging type:

Box

pcb contact:

THT

pin spacing:

10.16 mm / 0.4 inch

pole no:

3

rated current:

76 A

rated current csa use group b:

66 A

rated current csa use group c:

66 A

rated current csa use group d:

0.208333333333333

rated current ul 1977:

85 A

rated current ul use group b:

66 A

rated current ul use group c:

66 A

rated current ul use group d:

0.208333333333333

rated surge voltage ii 2:

8 kV

rated surge voltage iii 2:

8 kV

rated surge voltage iii 3:

8 kV

rated voltage csa use group b:

300 V

rated voltage csa use group c:

300 V

rated voltage csa use group d:

600 V

rated voltage iii 2:

1000 V

rated voltage ul 1977:

600 V

rated voltage ul use group b:

300 V

rated voltage ul use group c:

300 V

rated voltage ul use group d:

600 V

ratings per:

IEC/EN 60664-1

safety information 1:

The MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure

solder pin arrangement:

Over the entire male connector (in-line)

solder pin dimensions:

1.2 x 1.2 mm

solder pin length:

4 mm

weight:

16.358 g

width:

31.78 mm / 1.251 inch
