Wago

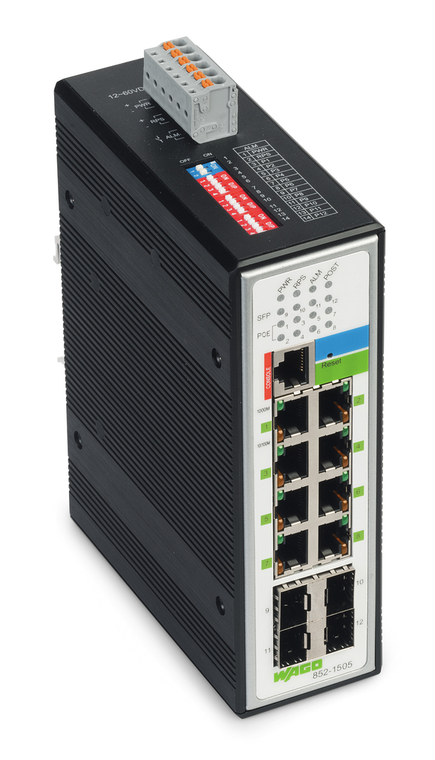

WAGO 852-1505

SKU:

852-1505

UPC:

MPN:

852-1505

Condition:

New

baud rate:

Copper cable: 10/1000 Mbit/s: Fiber optic:1000 Mbit/s

color:

Metallic black

communication standards:

IEEE 802.3 10BASE-T || IEEE 802.3u 100BASE-TX || IEEE 802.3ab 1000BASE-T || IEEE 802.3z 1000BASE-SX/LX || IEEE 802.3ad Port Trunk with LACP || IEEE 802.3x Flow Control || IEEE 802.1d Spanning Tree Protocol (STP) || IEEE 802.1w Rapid Spanning Tree Pro

configuration options:

DIP switch for signal contact || Command Line Interface || SNMPv1/v2c/v3

conformity marking:

CE

connection technology communication fieldbus:

Copper cable: 8 x RJ-45: Fiber optic: 4 x SFP: LC fiber-optic connector

connection technology supply:

1 x Built-in male connector: 231-436/001-000: included female connector (MCS Connectors): 2231-106/026-000

controls:

14 x DIP switch: Alarm function power supplies and ports 1 12

country of origin sales organisation germany:

TW

depth:

120 mm / 4.724 inch

diagnostics:

Signal contact, Modbus/TCP, port status, port statistics, port load, traffic monitor, SFP information, syslog, mail alarm, SNMP traps

emc emission of interference:

Per EN 61000-6-4

emc immunity to interference:

Per EN 61000-6-2

esd contact air discharge:

8 KV / 15 KV

fire load:

0.234 MJ

height:

162 mm / 6.378 inch

housing material:

Aluminum

indicators:

Device: LED (PWR, RPS, POST) green: power supply (primary), redundant power supply (secondary), POST function: LED (ALM) red: Alarm: LED (SFP) green, Status fiber optic ports: per port: LED (1000M, 10/100M) green, yellow: Status 1000 Mbps, 10/100 Mbp

jumbo frame size:

10000 Byte

mac table size:

16000 addresses

mounting type:

DIN-35 rail

number of 1000base sx lx ports:

4

number of 1000base t ports:

8

optical fiber type:

Single-mode and multi-mode

packaging type:

Box

power consumption max:

18 W

power consumption note:

258 W with 8 PoE+

protection type:

IP30

redundancy function:

Redundant DC power supply: STP: RSTP: MSTP: Jet Ring < 300 ms: Xpress Ring < 20 ms: Dual Homing < 20 ms: Dual Ring: ERPSv2 < 50 ms: LCAP

relative humidity without condensation:

0.95

shock resistance:

Per IEC 60068-2-27

supply voltage:

48 57 VDC

surrounding air temperature operation:

-40 70 C

surrounding air temperature storage:

-40 80 C

switching mode:

Storeandforward: non-blocking

transmission medium communication fieldbus:

Copper cable: Cat. 5e or higher, 100 m maximum cable length: Fiber optic: SX Multi-Mode, LX Single-Mode

vibration resistance:

Per IEC 60068-2-6

vlan:

Port-based and tag-based (4k VIDs)

weight:

860.000 g

width:

50 mm / 1.969 inch
