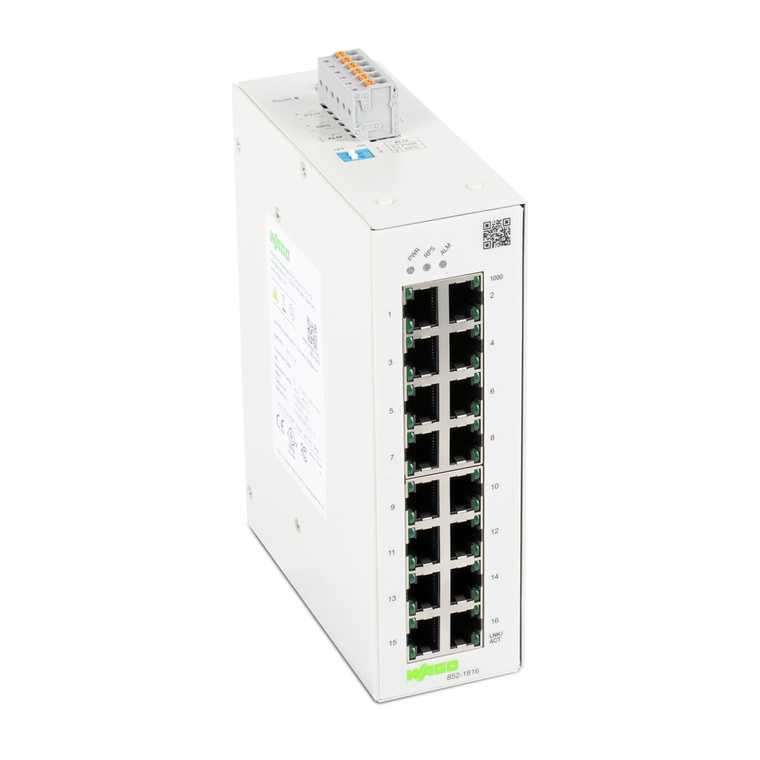

Lean Managed Switch; 16 Ports 1000Base-T.
The WAGO 852 series is a 16-port Lean Gigabit managed Ethernet network switch with redundant DC power supply, supporting Ethernet/IP communication. It operates on a supply voltage of 12-60Vdc and features 16 RJ45 ports (1000BASE-T). The switch is designed for DIN-35 rail or wall mounting with a 50mm width, has an IP30 rating, and is suitable for ambient temperatures ranging from -40°C to +60°C. It is equivalent to model 8521816.
- baud rate:
- Copper cable: 10/1000 Mbit/s
- color:
- Light gray
- communication standards:
- IEEE 802.3 10BASE-T || IEEE 802.3u 100BASE-TX/FX || IEEE 802.3ab 1000BASE-T || IEEE 802.3x Flow Control || IEEE 802.1d Spanning Tree Protocol (STP) || IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) || IEEE 802.1Q VLAN Tagging || IEEE 802.1p Prioriti
- configuration options:
- DIP switch for signal contact || Web-Based Management || Command Line Interface || SNMPv1/v2c/v3
- conformity marking:
- CE
- connection technology communication fieldbus:
- Copper cable: 16 x RJ-45
- country of origin sales organisation germany:
- TW
- depth:
- 120 mm / 4.724 inch
- diagnostics:
- Signal contact: Modbus TCP: port status: port statistics: port load: traffic monitor: syslog: SNMP traps: loop detection: diagnostics dashboard: topology map
- emc emission of interference:
- Per EN 61000-6-4
- emc immunity to interference:
- Per EN 61000-6-2
- esd contact air discharge:
- 8 KV / 15 KV
- fire load:
- 0.000 MJ
- height:
- 160 mm / 6.299 inch
- jumbo frame size:
- 10000 Byte
- mac table size:
- 8000 addresses
- mounting type:
- DIN-35 rail
- number of 1000base t ports:
- 16
- power consumption max:
- 12 W
- protection type:
- IP30
- redundancy function:
- Redundant DC power supply: STP: RSTP: ERPSv1/v2 (max. 2 rings per switch, max. 16 switches per ring, switching time < 800 ms)
- relative humidity without condensation:
- 0.95
- security:
- Access Control List mit max. 32 Eintr¤gen: Port Security: Authentication IEEE 802.1X
- shock resistance:
- Per IEC 60068-2-27
- supply voltage:
- 12 60 VDC
- surrounding air temperature operation:
- -40 60 C
- surrounding air temperature storage:
- -40 85 C
- switching mode:
- Storeandforward: non-blocking
- vibration resistance:
- Per IEC 60068-2-6
- vlan:
- Port-based and tag-based (max. 5 VLANs)
- weight:
- 840.000 g
- width:
- 50 mm / 1.969 inch
