WAGO 852-201/107-030
Wago
$336.20

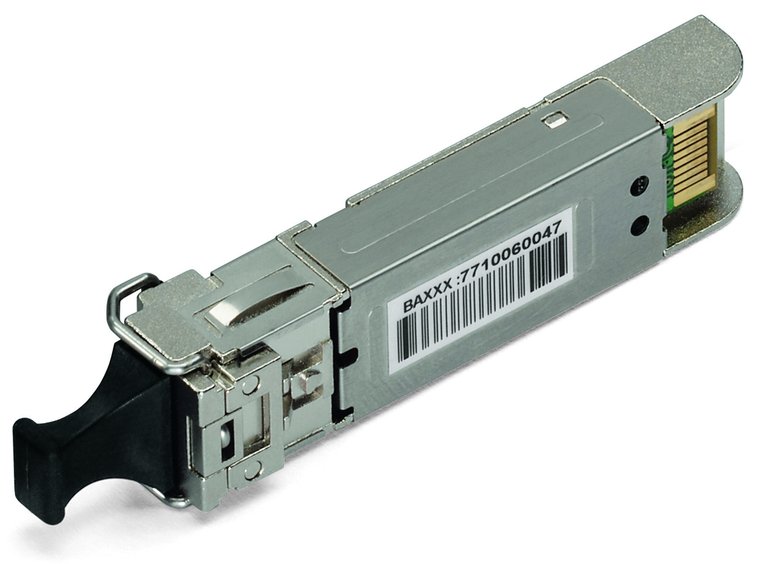

Fiber-optic module; 1310 nm; 100Base-FX single-mode LC; 30 km.
The WAGO 852 series SFP Module 30 is a small form-factor pluggable transceiver designed for single-mode fiber with a 9/125?m core. It operates at a wavelength of 1310nm and supports 100BASE-FX connections over distances up to 30 kilometers. The module is rated for ambient temperatures ranging from 0°C to +60°C and is equivalent to the model number 852201107030.
- color:
- Silver-colored
- connection requirement permissible cable length:
- 30000 m
- connection requirement permissible cable type:
- Single-mode fiber 9/125 m: Wavelength: 1310 nm
- connection technology communication fieldbus:
- 1 x SFP: LC fiber-optic connector
- country of origin sales organisation germany:
- TW
- depth:
- 56.6 mm / 2.228 inch
- fire load:
- 0.000 MJ
- height:
- 13.3 mm / 0.524 inch
- optical fiber type:
- Single-mode
- packaging type:
- Box
- surrounding air temperature operation:
- 0 60 C
- surrounding air temperature storage:
- -20 80 C
- weight:
- 25.500 g
- width:
- 13.4 mm / 0.528 inch
