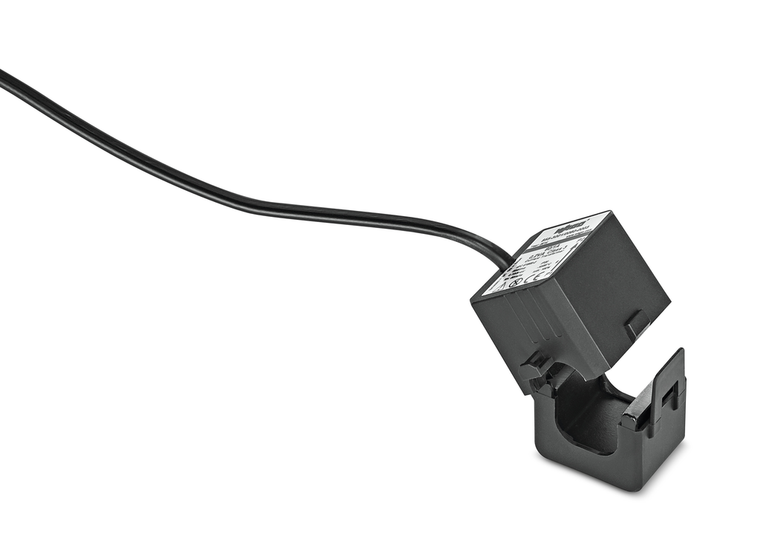

WAGO 855-3001/075-003 Split-Core Current Transformer, 75A Primary, 1A Secondary, 0.2 VA, Accuracy Class 3
Wago
$342.50
Split-core current transformer; Primary rated current: 75 A; Secondary rated current: 1 A; Rated power: 0.2 VA; Accuracy class: 3.
The WAGO component equivalent to 8553001075003 is a specific part or product within the WAGO catalog, likely used in electrical or automation applications. This component is identified by its unique part number, which helps in ensuring compatibility and proper functionality within a given system. The exact specifications, features, and applications of this component would be detailed in WAGO's product documentation or datasheets, which provide essential information for engineers and technicians to integrate it effectively into their projects.
- accuracy class:
- 3
- cable length:
- 3 m
- cable type:
- 2 x 0.5 mm: fine-stranded
- color code:
- Brown = S1: blue = S2
- country of origin sales organisation germany:
- NL
- feedthrough for measurement conductor:
- 18 mm
- fire load:
- 0.000 MJ
- flammability class per ul94:
- V2
- mounting type:
- Split-core current transformer (suspended)
- operating altitude max:
- 2000 m
- packaging type:
- Box
- primary rated current:
- 75 A
- rated continuous thermal current icth:
- 1
- rated frequency:
- 50 60 Hz
- rated power sr:
- 0.2 VA
- rated short time thermal current ith:
- 60 x IN / 1 s
- rated surge current idyn:
- 2.5 x Ith
- relative humidity:
- 5 85 % (without condensation)
- secondary rated current:
- 0.0416666666666667
- standards specifications:
- EN 61869-1 || EN 61869-2
- surrounding air temperature operation:
- -10 55 C
- surrounding air temperature storage:
- -20 70 C
- test voltage:
- AC 3 kV: 50 Hz: 1 min
- weight:
- 225.000 g
