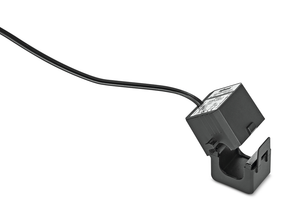

WAGO 855-3001/200-001 Split-Core Current Transformer, 200A Input, 1A Output, 0.2 VA, 3m Cable
Wago
$342.50
Split-core current transformer; 200 A / 1 A; 3 m long.
The Split-core measurement current transformer (CT) from WAGO's 855 series, with a 200/1A ratio and Accuracy Class 1 (Cl.1), has a maximum burden of 0.2VA. It features a 3-meter cable with bare end flying leads, is designed for cable mounting, and has an IP20 protection rating. The transformer is suitable for ambient temperatures ranging from -10°C to +55°C and is equivalent to model number 8553001200001.
- accuracy class:
- 1
- cable length:
- 3 m
- cable type:
- 2 x 0.5 mm: fine-stranded
- color code:
- Brown = S1: blue = S2
- conformity marking:
- CE
- country of origin sales organisation germany:
- NL
- feedthrough for measurement conductor:
- 18 mm
- fire load:
- 0.000 MJ
- flammability class per ul94:
- V2
- housing material:
- PA 66
- mounting type:
- Split-core current transformer (suspended)
- operating altitude max:
- 2000 m
- packaging type:
- Box
- primary rated current:
- 200 A
- rated continuous thermal current icth:
- 1
- rated frequency:
- 50 60 Hz
- rated power sr:
- 0.2 VA
- rated short time thermal current ith:
- 60 x IN / 1 s
- rated surge current idyn:
- 2.5 x Ith
- relative humidity:
- 5 85 % (without condensation)
- secondary rated current:
- 0.0416666666666667
- standards specifications:
- EN 61869-1 || EN 61869-2
- surrounding air temperature operation:
- -10 55 C
- surrounding air temperature storage:
- -20 70 C
- test voltage:
- AC 3 kV: 50 Hz: 1 min
- weight:
- 9.999 g
