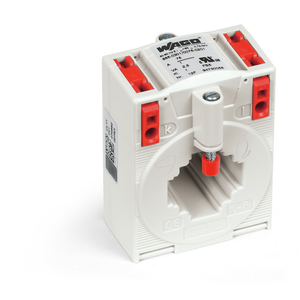

| Description | Plug-in current transformer; 200 A / 5 A |
| Remarks | Item description:
Short description: The 855 Series Plug-In Current Transformers are inductive, single-conductor current transformers. Due to the measurement principle used, these current transformers are exclusively designed for AC network applications. Features: - Screwless CAGE CLAMP connection technology
- Several mounting options available
- Vibration- and shock-resistant
- High mechanical retention forces
- High current-carrying capacity
- Continuous overload of 120 % the nominal primary current
- Low-voltage current transformer for operating voltages up to max. 1.2 kV
- Can be used in 690 V power networks
- UL recognized components
|
| |
| Item properties | Miscellaneous | Name | Value | Unit | | Conformity marking | CE | | | Max. operating voltage VB max. | 1.2 kVrms | | | Test voltage | 6 kVrms AC / 50 Hz / 1 min | | | Connection technology | CAGE CLAMP | | | Solid conductor | 0.08 4 mm / 28 12 AWG | | | Strip length | 9 10 mm / 0.35 0.39 Inch | | | Weight [g] | 324 | g | | Width | 60 mm / 2.362 Inch | | | Height | 80.9 mm / 3.185 Inch | | | Depth | 52 mm / 2.047 Inch | | | Storage temperature | -25 C ... +70 C | | | Type of mounting | Plugged onto conductors | | | Ambient operating temperature | -5 C ... +50 C | | |
.
The WAGO 855 series plug-in measurement current transformer (CT) with a 200/5A rating and Accuracy Class 1 (Cl.1) is designed for a maximum burden of 5VA. It features CAGE CLAMP spring connections and can be mounted on a DIN-rail (with adapter), surface, or cable, with a width of 60mm. The transformer is rated for ambient temperatures ranging from -5°C to +50°C and is equivalent to model 855305200501.
