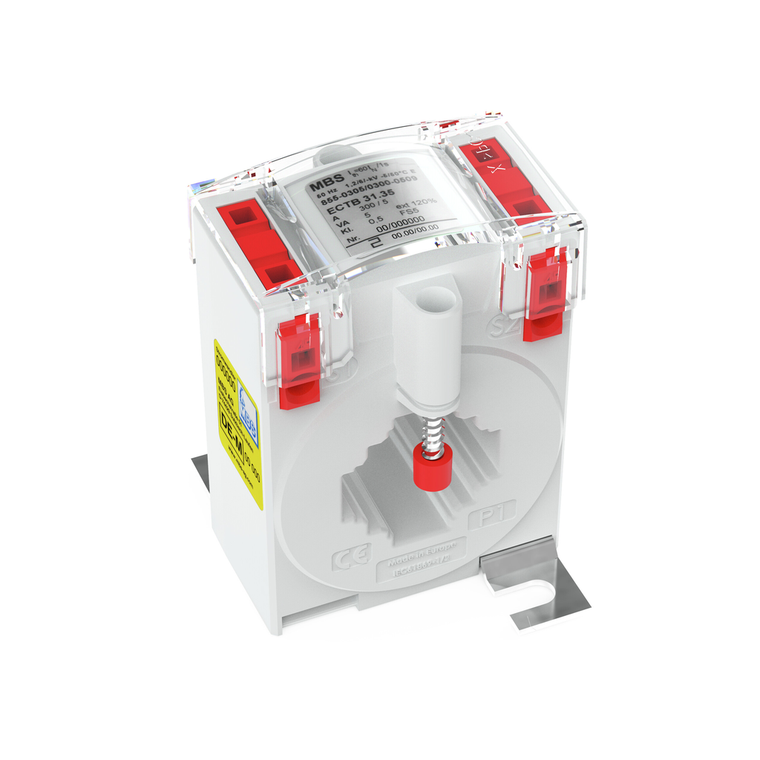

WAGO 855-305/300-509
Wago
$811.20
Plug-in current transformer PRC 300A SRC 5A.
The WAGO component equivalent to 855305300509 is a specific part used in electrical and automation systems. It is designed to provide reliable connectivity and functionality within these systems, ensuring efficient performance and integration. This component is known for its high quality and compatibility with various applications, making it a preferred choice for professionals in the industry.
- accuracy class:
- 0.5
- conformity marking:
- CE
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth:
- 52 mm / 2.047 inch
- fine stranded conductor:
- 0.08 4 mm / 28 12 AWG
- fire load:
- 0.000 MJ
- height:
- 80.9 mm / 3.185 inch
- insulation class:
- E
- mounting type:
- Closed current transformer || Installation on mounting plate || Mounting on DIN-rail via DIN-rail adapter || Mounting on round cable
- operating altitude max:
- 1000 m
- overcurrent limiting factor:
- FS5 / FS10 (type dependent: see type plate inscription)
- packaging type:
- BOX
- primary rated current:
- 300 A
- rated continuous thermal current icth:
- 1.2 x IN (AC)
- rated frequency:
- 50 60 Hz
- rated power sr:
- 5 VA
- rated short time thermal current ith:
- 60 x IN / 1 s (max. 100 kA / 1 s)
- secondary rated current:
- 0.208333333333333
- solid conductor:
- 0.08 4 mm / 28 12 AWG
- standards specifications:
- EN 61869-1 || EN 61869-2
- strip length:
- 9 10 mm / 0.35 0.39 inch
- surrounding air temperature operation:
- -5 50 C
- surrounding air temperature storage:
- -25 70 C
- test voltage:
- AC 6 kV: 50 Hz: 1 min
- weight:
- 230.000 g
- width:
- 60 mm / 2.362 inch
