Wago

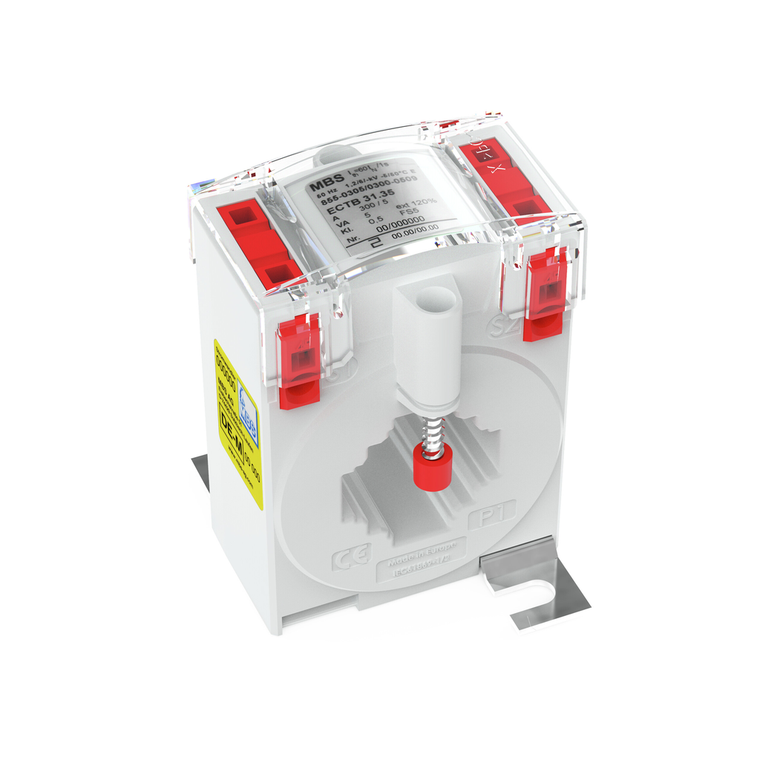

WAGO 855-305/500-509

SKU:

855-305/500-509

UPC:

MPN:

855-305/500-509

Condition:

New

accuracy class:

0.5

conformity marking:

CE

connection technology:

CAGE CLAMP

country of origin sales organisation germany:

DE

depth:

52 mm / 2.047 inch

fine stranded conductor:

0.08 4 mm / 28 12 AWG

fire load:

0.000 MJ

height:

80.9 mm / 3.185 inch

insulation class:

E

mounting type:

Closed current transformer || Installation on mounting plate || Mounting on DIN-rail via DIN-rail adapter || Mounting on round cable

operating altitude max:

1000 m

overcurrent limiting factor:

FS5 / FS10 (type dependent: see type plate inscription)

packaging type:

BOX

primary rated current:

500 A

rated continuous thermal current icth:

1.2 x IN (AC)

rated frequency:

50 60 Hz

rated power sr:

5 VA

rated short time thermal current ith:

60 x IN / 1 s (max. 100 kA / 1 s)

secondary rated current:

0.208333333333333

solid conductor:

0.08 4 mm / 28 12 AWG

standards specifications:

EN 61869-1 || EN 61869-2

strip length:

9 10 mm / 0.35 0.39 inch

surrounding air temperature operation:

-5 50 C

surrounding air temperature storage:

-25 70 C

test voltage:

AC 6 kV: 50 Hz: 1 min

weight:

230.000 g

width:

60 mm / 2.362 inch
