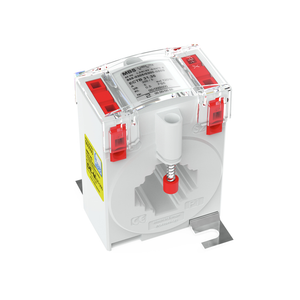

Plug-in current transformer; Primary rated current: 600 A; Secondary rated current: 5 A; Rated power: 5 VA; Accuracy class: 0.5; for billing purposes.
The WAGO component equivalent to 855305600509 is a specific part used in electrical and automation systems. It is designed to provide reliable and efficient connectivity solutions, ensuring secure and stable connections in various applications. This component is known for its high quality, durability, and compatibility with other WAGO products, making it a preferred choice for professionals in the industry.
- accuracy class:
- 0.5
- conformity marking:
- CE
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth:
- 52 mm / 2.047 inch
- fine stranded conductor:
- 0.08 4 mm / 28 12 AWG
- fire load:
- 0.000 MJ
- height:
- 80.9 mm / 3.185 inch
- insulation class:
- E
- mounting type:
- Closed current transformer || Installation on mounting plate || Mounting on DIN-rail via DIN-rail adapter || Mounting on round cable
- operating altitude max:
- 1000 m
- overcurrent limiting factor:
- FS5 / FS10 (type dependent: see type plate inscription)
- packaging type:
- BOX
- primary rated current:
- 600 A
- rated continuous thermal current icth:
- 1.2 x IN (AC)
- rated frequency:
- 50 60 Hz
- rated power sr:
- 5 VA
- rated short time thermal current ith:
- 60 x IN / 1 s (max. 100 kA / 1 s)
- secondary rated current:
- 0.208333333333333
- solid conductor:
- 0.08 4 mm / 28 12 AWG
- standards specifications:
- EN 61869-1 || EN 61869-2
- strip length:
- 9 10 mm / 0.35 0.39 inch
- surrounding air temperature operation:
- -5 50 C
- surrounding air temperature storage:
- -25 70 C
- test voltage:
- AC 6 kV: 50 Hz: 1 min
- weight:
- 230.000 g
- width:
- 60 mm / 2.362 inch
