Name: WAGO 855-4101/400-001
Brand: Wago
SKU: 855-4101/400-001
Price: 330.5 USD
Availability: InStock

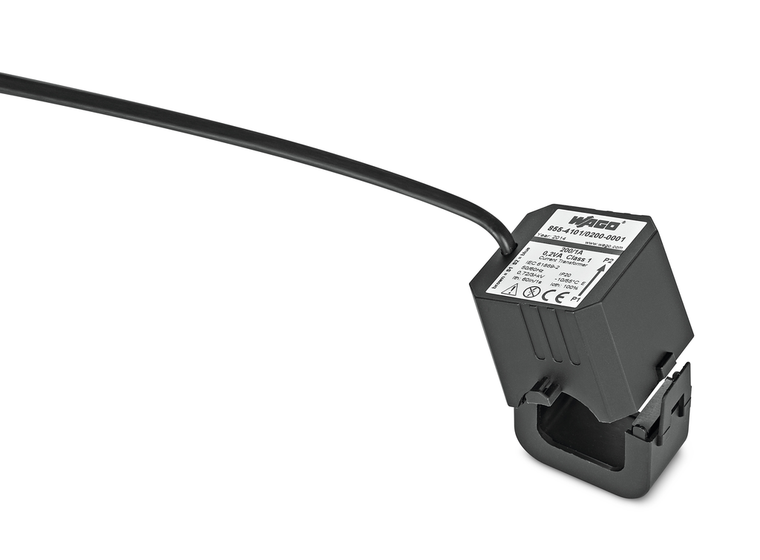

WAGO 855-4101/400-001

(No reviews yet) Write a Review

SKU:

855-4101/400-001

MPN:

855-4101/400-001

Condition:

New

accuracy class:

cable length:

3 m

cable type:

2 x 0.5 mm: fine-stranded

color code:

Brown = S1: blue = S2

conformity marking:

country of origin sales organisation germany:

feedthrough for measurement conductor:

28 mm

fire load:

0.000 MJ

flammability class per ul94:

housing material:

PA 66

mounting type:

Split-core current transformer (suspended)

operating altitude max:

2000 m

packaging type:

Box

primary rated current:

400 A

rated continuous thermal current icth:

rated frequency:

50 60 Hz

rated power sr:

0.2 VA

rated short time thermal current ith:

60 x IN / 1 s

rated surge current idyn:

2.5 x Ith

relative humidity:

5 85 % (without condensation)

secondary rated current:

0.0416666666666667

standards specifications:

EN 61869-1 || EN 61869-2

surrounding air temperature operation:

-10 55 C

surrounding air temperature storage:

-20 70 C

test voltage:

AC 3 kV: 50 Hz: 1 min

weight:

9.999 g

Description

Description

Description

Split-core current transformer; 400 A / 1 A; 3 m long

Remarks

Item description:

Short description:

WAGO's compact split-core current transformers are ideal for retrofit applications in existing systems. They are particularly suited for applications in which the current path may not be disrupted. The transformer's accuracy permits extremely precise current measurements. The split-core current transformers are capable of supplying the specified rated power at the end of the secondary cable. All transformers are supplied with color-coded cables. Two UV-resistant cable ties for reliable and easy mounting are also included.

Features:

Current ratios from 60 A up to 1000 A (primary side) and 1 A or 5 A (secondary side)

No interruption of the measuring cable

Ideal for use in very confined spaces

Superfast mounting

For use around insulated cables up to 42 mm

Compact and hinged

Color-coded connecting cables up to 5 m

Item properties

Miscellaneous

Name	Value	Unit
Conformity marking	CE
Cable length [m]	3	m
Degree of protection	IP20
Marking	brown = S1, blue = S2
Fine-stranded conductor	0.5 0 mm /
Weight [g]	9.999	g
Type of mounting	Surrounding conductor (divisible)
Cross sections	0.5 mm fine-stranded
Ambient operating temperature	-10 +55
Housing material	PA 66
Relative humidity	5 % 85 % (non-condensing)

The Split-core measurement current transformer (CT) from WAGO's 855 series, with a 400/1A ratio and Accuracy Class 1 (Cl.1), has a maximum burden of 0.2VA. It comes with a 3-meter cable that has bare end flying leads for cable mounting. The device is rated IP20 and is suitable for ambient temperatures ranging from -10°C to +55°C. The product is equivalent to model number 8554101400001.
