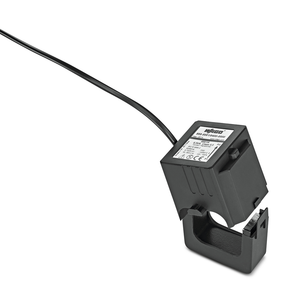

WAGO 855-5001/500-000 Split-Core Current Transformer, 500A Input, 1A Output
Wago
$482.10
Split-core current transformer; Primary rated current: 500 A; Secondary rated current: 1 A; Rated power: 0.5 VA; Accuracy class: 1.
The WAGO component equivalent to 8555001500000 is a specific part or module within the WAGO product range, likely used for electrical or automation applications. This component is identified by its unique part number, which helps in ensuring compatibility and proper functionality within WAGO systems.
- accuracy class:
- 0.5
- cable length:
- 5 m
- cable type:
- 2 x 0.5 mm: fine-stranded
- color code:
- Brown = S1: blue = S2
- conformity marking:
- CE
- country of origin sales organisation germany:
- NL
- feedthrough for measurement conductor:
- 42 mm
- fire load:
- 0.000 MJ
- flammability class per ul94:
- V2
- housing material:
- PA 66
- mounting type:
- Split-core current transformer (suspended)
- operating altitude max:
- 2000 m
- packaging type:
- Box
- primary rated current:
- 500 A
- rated continuous thermal current icth:
- 1
- rated frequency:
- 50 60 Hz
- rated power sr:
- 0.5 VA
- rated short time thermal current ith:
- 60 x IN / 1 s
- rated surge current idyn:
- 2.5 x Ith
- relative humidity:
- 5 85 % (without condensation)
- secondary rated current:
- 0.0416666666666667
- standards specifications:
- EN 61869-1 || EN 61869-2
- surrounding air temperature operation:
- -10 55 C
- surrounding air temperature storage:
- -20 70 C
- test voltage:
- AC 3 kV: 50 Hz: 1 min
- weight:
- 690.000 g
