WAGO 855-5005/750-000
Wago
$482.10

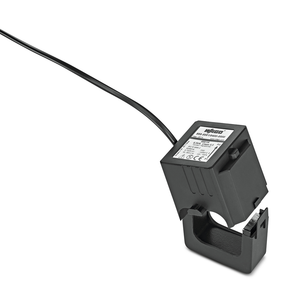

Split-core current transformer; Primary rated current 750 A; Secondary rated current: 5 A; Rated power: 0.5 VA; Accuracy class: 0.5.
The WAGO component equivalent to 8555005750000 is a specific part or product within WAGO's range of electrical interconnection and automation solutions. This component is likely used in various applications requiring reliable and efficient electrical connections, such as in industrial automation, building technology, and other electrical engineering fields. WAGO is known for its high-quality products that ensure safety, durability, and ease of use, making this component a valuable asset in its respective applications.
- accuracy class:
- 0.5
- cable length:
- 3 m
- cable type:
- 2 x 1.5 mm: fine-stranded
- color code:
- Black = S1: red = S2
- conformity marking:
- CE
- country of origin sales organisation germany:
- NL
- feedthrough for measurement conductor:
- 42 mm
- fire load:
- 0.000 MJ
- flammability class per ul94:
- V2
- housing material:
- PA 66
- mounting type:
- Split-core current transformer (suspended)
- operating altitude max:
- 2000 m
- packaging type:
- Box
- primary rated current:
- 750 A
- rated continuous thermal current icth:
- 1
- rated frequency:
- 50 60 Hz
- rated power sr:
- 0.5 VA
- rated short time thermal current ith:
- 60 x IN / 1 s
- rated surge current idyn:
- 2.5 x Ith
- relative humidity:
- 5 85 % (without condensation)
- secondary rated current:
- 0.208333333333333
- standards specifications:
- EN 61869-1 || EN 61869-2
- surrounding air temperature operation:
- -10 55 C
- surrounding air temperature storage:
- -20 70 C
- test voltage:
- AC 3 kV: 50 Hz: 1 min
- weight:
- 650.000 g
