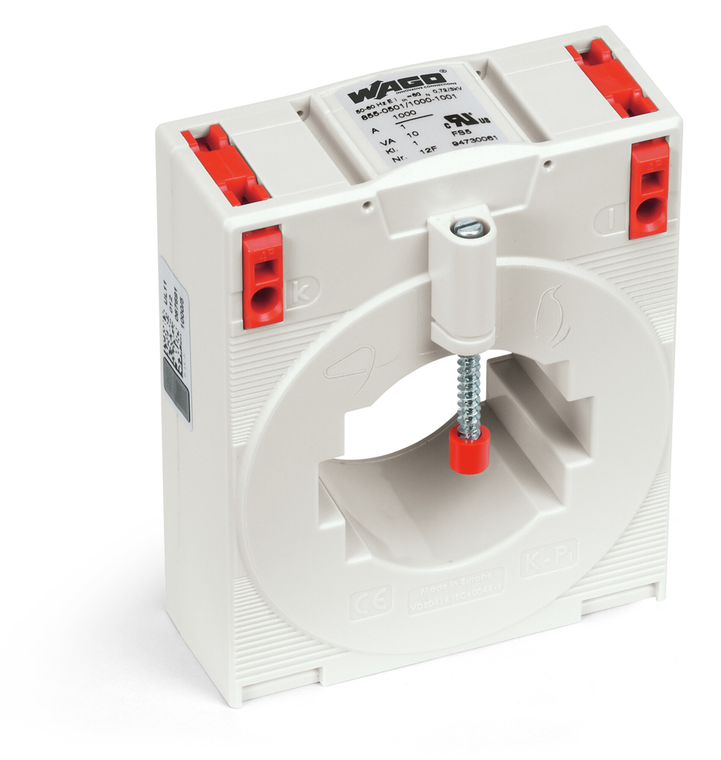

WAGO 855-501/1000-1001: High-Quality Electrical Connector
Wago
$163.50
Plug-in current transformer; 1000 A / 1 A.
The WAGO 855 series measurement current transformer (CT) with a 1000/1A ratio and Accuracy Class 1 (Cl.1) is designed for a maximum burden of 10VA. It features CAGE CLAMP spring connections and can be mounted on surfaces or cables with an 85mm width. The CT is rated for ambient temperatures ranging from -5°C to +50°C and is equivalent to model number 85550110001001.
- accuracy class:
- 1
- conformity marking:
- CE
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- HU
- depth:
- 52 mm / 2.047 inch
- fine stranded conductor:
- 0.08 4 mm / 28 12 AWG
- fire load:
- 0.000 MJ
- height:
- 105.25 mm / 4.144 inch
- insulation class:
- E
- mounting type:
- Closed current transformer || Installation on mounting plate || Mounting on round cable
- operating altitude max:
- 1000 m
- overcurrent limiting factor:
- FS5 / FS10 (type dependent: see type plate inscription)
- packaging type:
- Box
- primary rated current:
- 1000 A
- rated continuous thermal current icth:
- 1.2 x IN
- rated frequency:
- 50 60 Hz
- rated power sr:
- 10 VA
- rated short time thermal current ith:
- 60 x IN / 1 s (max. 100 kA / 1 s)
- secondary rated current:
- 0.0416666666666667
- solid conductor:
- 0.08 4 mm / 28 12 AWG
- standards specifications:
- EN 61869-1 || EN 61869-2 || UL: E356480
- strip length:
- 9 10 mm / 0.35 0.39 inch
- surrounding air temperature operation:
- -5 50 C
- surrounding air temperature storage:
- -25 70 C
- test voltage:
- AC 6 kV: 50 Hz: 1 min
- weight:
- 230.000 g
- width:
- 85 mm / 3.346 inch
