Wago

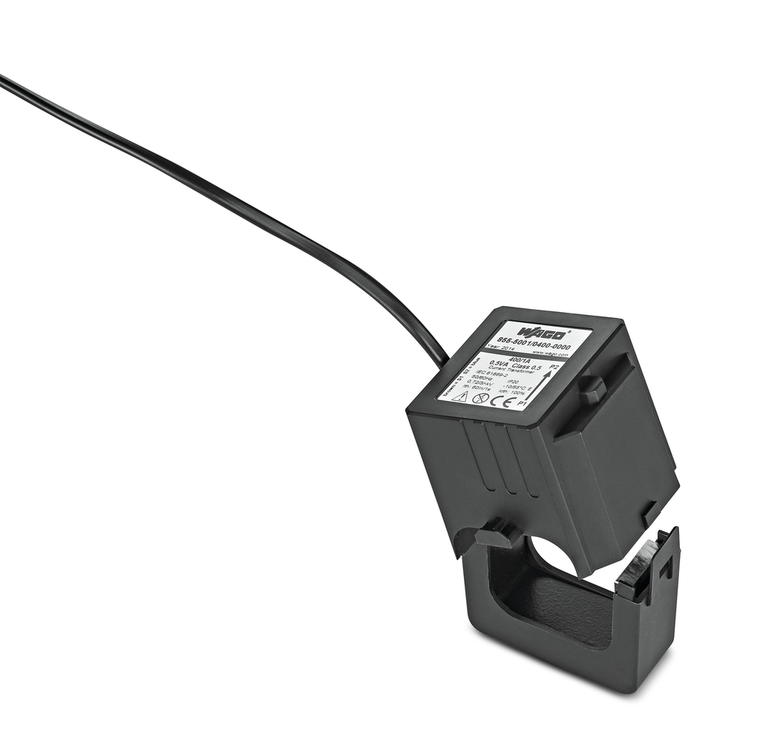

WAGO 855-5101/300-001

SKU:

855-5101/300-001

UPC:

MPN:

855-5101/300-001

Condition:

New

accuracy class:

1

cable length:

5 m

cable type:

2 x 0.5 mm: fine-stranded

color code:

Brown = S1: blue = S2

conformity marking:

CE

country of origin sales organisation germany:

NL

feedthrough for measurement conductor:

2 x 42 mm

fire load:

0.000 MJ

flammability class per ul94:

V2

housing material:

PA 66

mounting type:

Split-core current transformer (suspended)

operating altitude max:

2000 m

packaging type:

Box

primary rated current:

300 A

rated continuous thermal current icth:

1

rated frequency:

50 60 Hz

rated power sr:

0.5 VA

rated short time thermal current ith:

60 x IN / 1 s

rated surge current idyn:

2.5 x Ith

relative humidity:

5 85 % (without condensation)

secondary rated current:

0.0416666666666667

standards specifications:

EN 61869-1 || EN 61869-2

surrounding air temperature operation:

-10 55 C

surrounding air temperature storage:

-20 70 C

test voltage:

AC 3 kV: 50 Hz: 1 min

weight:

790.000 g
