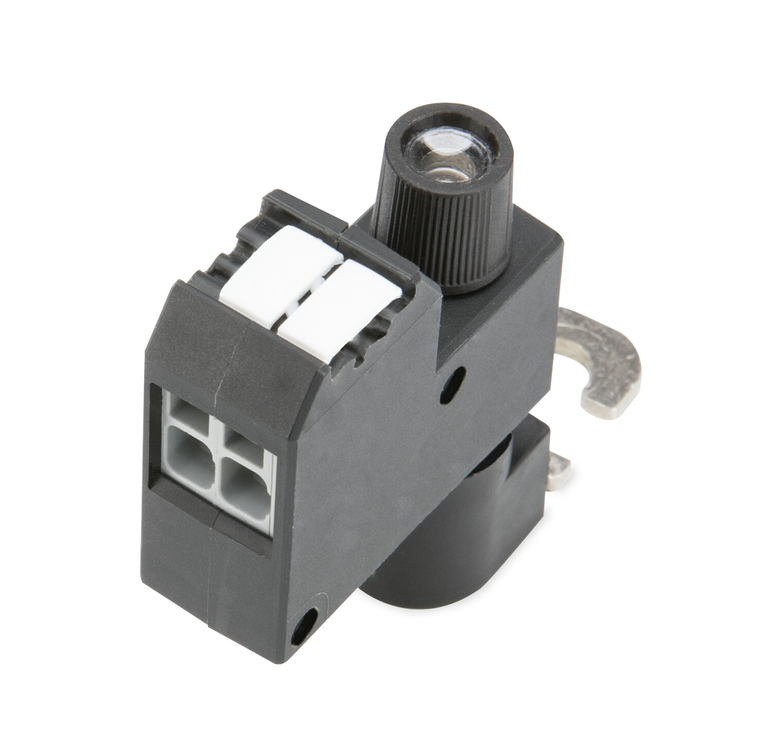

Power tap for busbar with fuse.
The WAGO 855 series power tap for busbars features a built-in fuse and M8 mounting screw, suitable for wire sizes ranging from 0.2mm² to 6mm². It operates at a rated voltage of 400Vac and utilizes Push-in CAGE CLAMP spring connections. This product is equivalent to the model 8558008.
- connection technology:
- Push-in CAGE CLAMP
- country of origin sales organisation germany:
- NL
- depth:
- 48 mm / 1.89 inch
- fine stranded conductor:
- 0.2 6 mm / 24 10 AWG
- fire load:
- 0.000 MJ
- fuse voltage path:
- 2 A: 450 V: F: 70 kA: 5 x 25 mm (WAGO 855-8020)
- height:
- 14 mm / 0.551 inch
- mounting type:
- M8 mount || Installation on busbar
- note:
- Spare fuse: WAGO 855-8020
- operating altitude max:
- 2000 m
- packaging type:
- Bag
- rated voltage:
- AC 400 V
- relative humidity:
- 5 85 % (without condensation)
- solid conductor:
- 0.2 6 mm / 24 10 AWG
- standards specifications:
- IEC 60947-7-3
- strip length:
- 10 12 mm / 0.39 0.47 inch
- surrounding air temperature operation:
- -25 70 C
- surrounding air temperature storage:
- -40 85 C
- vibration resistance:
- 10g (industry: 5 2000 Hz: per IEC 60068-2-6): 4g (ship: 5 150 Hz: per IEC 60068-2-6)
- wago connector:
- WAGO 2624 Series
- weight:
- 31.000 g
- width:
- 61 mm / 2.402 inch
