Wago

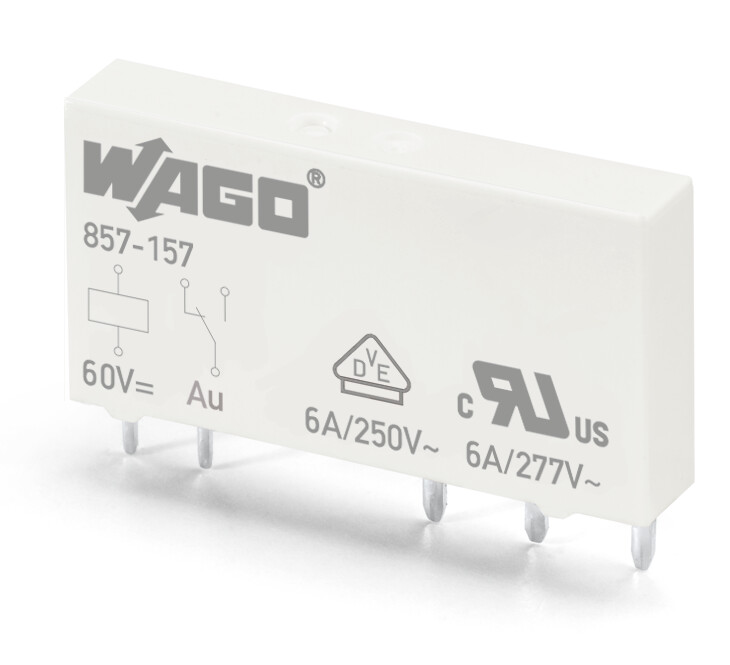

WAGO 857-157 Pack of 20

SKU:

857-157

UPC:

MPN:

857-157

Condition:

New

bounce time typ:

3.5 ms

contact material relay:

AgNi + Au

country of origin sales organisation germany:

DE

depth:

28 mm / 1.09 inch

dielectric strength control load circuit ac 1 min:

4 kVrms

dielectric strength open contact ac 1 min:

1 kVrms

drop out time typ:

4 ms

electrical life no resistive load 23 c:

50 x 103 switching operations

fire load:

0.072 MJ

height from the surface:

15 mm / 0.591 inch

inrush current resistive max:

(AC) 20 A / 0.02 s

limiting continuous current:

0.25

mechanical life:

5 x 106 switching operations

mounting type:

Pluggable module

nominal input voltage un:

DC 60 V

note:

The 60 VDC basic relay must be used for 60 VDC, 110 VDC, 220 VDC and 115 VAC/DC, 230 VAC/DC relay modules.To protect the relay coils and contacts, inductive loads must be dampened with an effective protection circuit.30 VDC switching voltages and 50

number of changeover switchover contacts:

1

operating altitude max:

2000 m

packaging type:

Box

protection type:

IP20

pull in time typ:

8 ms

recommended minimum load:

1 V / 1 mA / 1 mW

relative humidity:

5 85 % (no condensation permissible)

standards specifications:

EN 61810-1 || EN 61373 || VDE || UR

surrounding air temperature operation at un:

-40 85 C

surrounding air temperature storage:

-40 85 C

switching capacity:

AC-15: 3 A / AC 250 V: DC-13: 2 A / DC 24 V

switching frequency with without load max:

6 min-1 / 180 min-1

switching power resistive max:

AC 1500 VA: DC (see load limit curve)

switching voltage max:

AC 250 V

weight:

4.700 g

width:

5 mm / 0.197 inch
