Wago

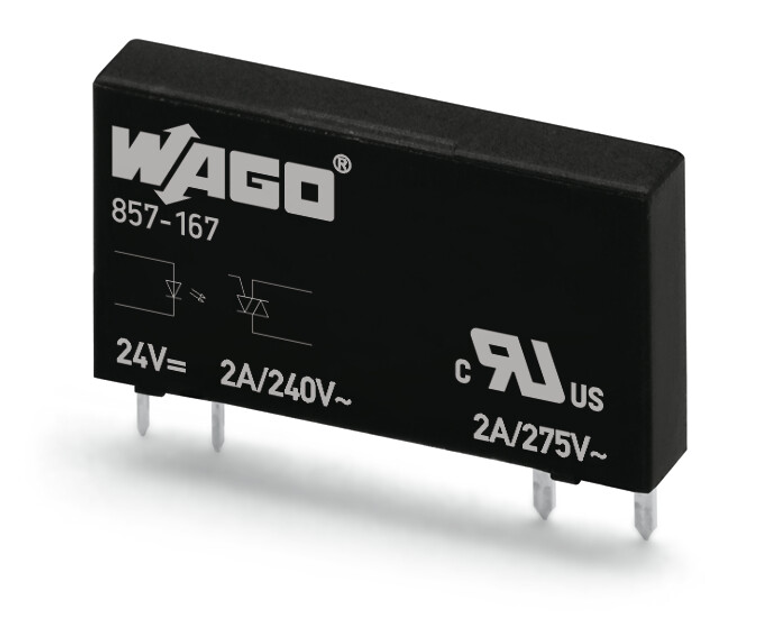

WAGO 857-167 Pack of 20

SKU:

857-167

UPC:

MPN:

2001-1201

Condition:

New

Availability:

In our warehouse: 16

actuation type:

Push-in || Operating tool

approvals per:

UL 1059

color:

Gray

connectable conductor materials:

Copper

connection technology:

Push-in CAGE CLAMP

country of origin sales organisation germany:

DE

depth from upper edge of din rail:

32.9 mm / 1.295 inch

design:

Horizontal type

fine stranded conductor:

0.25 2.5 mm / 22 14 AWG

fine stranded conductor with ferrule push in termination:

0.75 1.5 mm / 18 16 AWG

fine stranded conductor with insulated ferrule:

0.25 1.5 mm / 22 16 AWG

fire load:

0.086 MJ

flammability class per ul94:

V0

height:

48.5 mm / 1.909 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 3) Overvoltage category III / Pollution degree 3

marking level:

Center/side marking

mounting type:

DIN-35 rail

nominal cross section:

1.5 mm

nominal voltage iii 3:

800 V

note conductor cross section:

Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.

packaging type:

Box

rated current:

18 A

rated current 2:

24 A

rated current csa use group b:

15 A

rated current csa use group c:

15 A

rated current ex e ii:

17 A

rated current ex e ii with jumper:

16 A

rated current ul use group b:

15 A

rated current ul use group c:

15 A

rated surge voltage iii 3:

8 kV

rated voltage csa use group b:

600 V

rated voltage csa use group c:

600 V

rated voltage en ex e ii:

550 V

rated voltage ul use group b:

600 V

rated voltage ul use group c:

600 V

ratings per:

IEC/EN 60947-7-1

solid conductor:

0.25 2.5 mm / 22 14 AWG

solid conductor push in termination:

0.75 2.5 mm / 18 14 AWG

strip length:

9 11 mm / 0.35 0.43 inch

weight:

3.931 g

width:

4.2 mm / 0.165 inch

wiring direction:

Front-entry wiring
