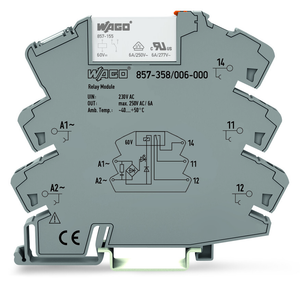

WAGO 857-368/006-000 relay module, 230 VAC, 6 A, gold contacts, integrated base load module, yellow LED, 6 mm width
Wago
$47.70
RELAC 230V, gray.
The WAGO 857 series plug-in relay assembly features a socket base with an ejector, a built-in base load module, and a yellow LED indicator. It is a single-pole (1P) relay with a control voltage range of 195.5-253Vac (230Vac nominal; 50/60Hz; 0.85...1.1 x Uc) and a Single Pole Double Throw (SPDT) contact configuration. The relay is electromechanical in design, with a rated current of 50mA (30Vdc; DC-13) to prevent gold flash evaporation. It includes Push-in CAGE CLAMP connections and is designed for DIN-35 rail mounting with a 6mm width. The contacts are made of hard gold-plated silver-nickel (AgNi + Au) and it is equivalent to model 857368006000, with an IP20 protection rating.
- bounce time typ:
- 3.5 ms
- cable length control circuit:
- ¤ 350 m (for a line capacitance of 330 nF/km)
- circuit type:
- Mains circuits
- color:
- Gray
- connection technology:
- Push-in CAGE CLAMP
- contact material relay:
- AgNi + Au
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 81 mm / 3.189 inch
- dielectric strength control load circuit ac 1 min:
- 3.51 kVrms
- dielectric strength open contact ac 1 min:
- 1 kVrms
- drop out time typ:
- 25 ms
- electrical life no resistive load 23 c:
- 50 x 103 switching operations
- fine stranded conductor:
- 0.34 2.5 mm / 22 14 AWG
- fire load:
- 0.000 MJ
- height:
- 94 mm / 3.701 inch
- input voltage range:
- -15 +10 %
- inrush current resistive max:
- (AC) 20 A / 0.02 s
- insulation type between adjacent devices of the the same type:
- Reinforced insulation (safe isolation)
- insulation type control load circuit:
- Reinforced insulation (safe isolation)
- limiting continuous current:
- 0.25
- line capacitance max:
- 170 nF
- mechanical life:
- 5 x 106 switching operations
- mounting type:
- DIN-35 rail
- nominal input current at un:
- 16 mA
- nominal input voltage un:
- AC 230 V
- note:
- To prevent damaging the gold layer, 30 V switching voltages and 50 mA currents must not be exceeded. Higher switching power eventually evaporates the gold layer. The resulting deposits in the housing may reduce service life.To protect the relay coils
- number of changeover switchover contacts:
- 1
- operating altitude max:
- 2000 m
- overvoltage category:
- III
- packaging type:
- Box
- pollution degree:
- 2
- processing temperature:
- -25 +50 C
- protection type:
- IP20
- pull in time typ:
- 15 ms
- rated surge voltage:
- 4 kV
- rated voltage:
- 300 V
- recommended minimum load:
- 1 V / 1 mA / 1 mW
- relative humidity:
- 5 85 % (no condensation permissible)
- solid conductor:
- 0.34 2.5 mm / 22 14 AWG
- standards specifications:
- EN 61010-2-201 || EN 61810-1 || EN 61373
- status indicator:
- Yellow LED
- strip length:
- 9 10 mm / 0.35 0.39 inch
- surrounding air temperature operation at un:
- -40 60 C
- surrounding air temperature storage:
- -40 70 C
- switching capacity:
- AC-15: 3 A / AC 250 V: DC-13: 2 A / DC 24 V
- switching frequency with without load max:
- 6 min-1 / 180 min-1
- switching power resistive max:
- AC 1500 VA: DC (see load limit curve)
- switching voltage max:
- AC 250 V
- wago basic relay:
- 857-157
- weight:
- 31.477 g
