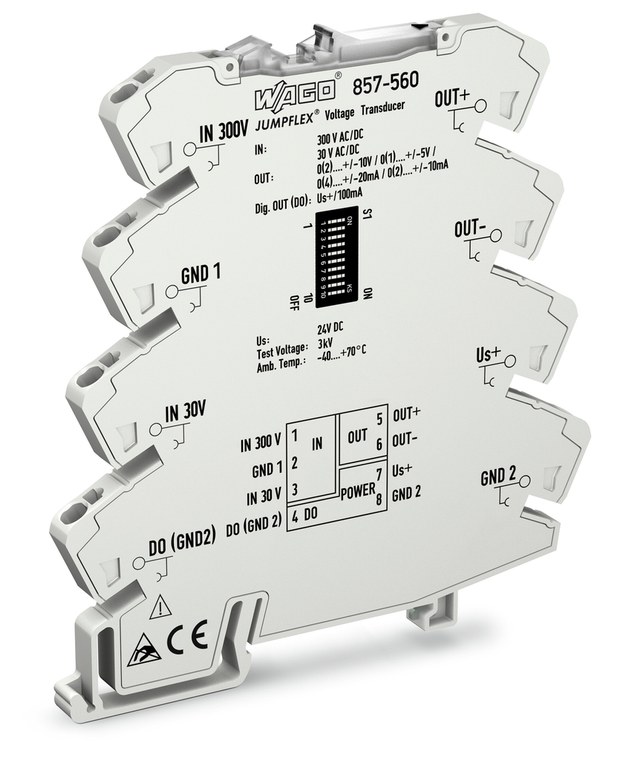

WAGO 857-560

The WAGO 857 series voltage signal conditioner features a DIP switch and software/app interface configuration, with one analog input (300Vac/dc / 30Vdc/ac) and one analog output (various ranges including 0-10mA, 2-10mA, 0-20mA, 4-20mA, 0-5Vdc, 1-5Vdc, 0-10Vdc, 2-10Vdc). It operates on a supply voltage of 16.8-26.4Vdc (24Vdc nominal) and includes Push-in CAGE CLAMP spring connections for easy installation on a DIN-35 rail (6mm width). The device is rated IP20 and can function in ambient temperatures ranging from -40°C to +70°C, equivalent to model 857560.
