P-TRANSDUCERUI UI.

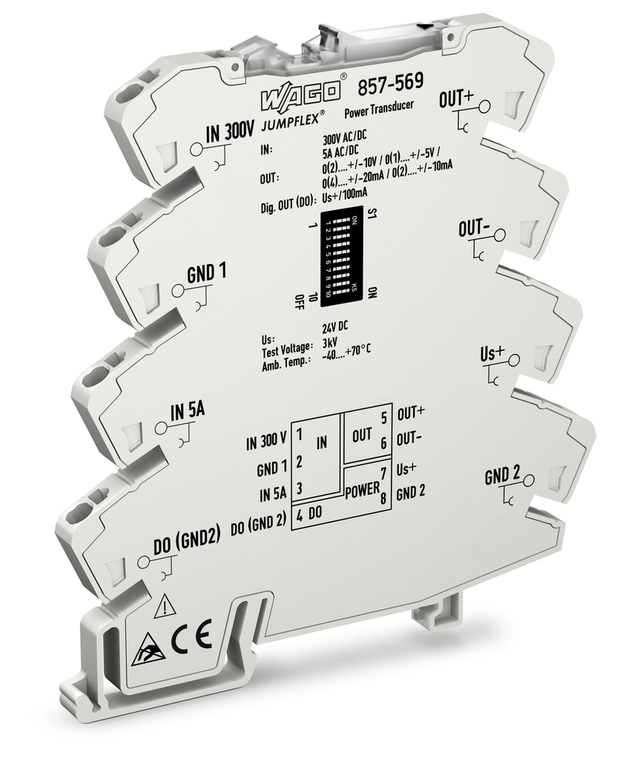

The WAGO 857 series power signal conditioner features a DIP switch and software/app interface configuration, with one analog input (0-5A) and one analog output that supports various ranges (0-10mA, 2-10mA, 0-20mA, 4-20mA, 0-5Vdc, 1-5Vdc, 0-10Vdc, 2-10Vdc). It operates on a supply voltage of 16.8-26.4Vdc (24Vdc nominal) and includes Push-in CAGE CLAMP spring connections for easy installation on a DIN-35 rail (6mm width). The device is rated for IP20 protection and can function in ambient temperatures ranging from -40°C to +70°C, equivalent to model 857569.
- configurable rise fall delay time do:
- 0 60 s (via software)
- configuration options:
- DIP switch || WAGO Interface Configuration Software || WAGO Interface Configuration App
- conformity marking:
- CE
- connection technology:
- Push-in CAGE CLAMP
- continuous current do max:
- 100 mA (no internal restriction)
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 97.8 mm / 3.85 inch
- emc emission of interference:
- EN 61000-6-3: EN 61326-2-3: EN 50121-3-2
- emc immunity to interference:
- EN 61000-6-2: EN 61326-2-3: EN 50121-3-2
- fine stranded conductor:
- 0.34 2.5 mm / 22 14 AWG
- fire load:
- 0.000 MJ
- frequency range:
- 15 70 Hz (AC)
- height:
- 94 mm / 3.701 inch
- input current max:
- 10 A AC/DC (IN 2: permanent)
- input resistance current input:
- ¤ 10 m
- input resistance voltage input:
- 300 k
- input signal current:
- AC/DC 0 5 A (IN 2)
- input signal type:
- Voltage || Current
- input signal voltage:
- AC/DC 300 V (IN 1)
- input voltage max:
- 600 V (IN 1: permanent)
- insulation type input analog output supply service interface:
- Reinforced insulation
- limit frequency:
- 2 kHz
- line to neutral conductor voltage ac max:
- 300 V
- load impedance current output:
- ¤ 600
- load impedance voltage output:
- 1 k
- measurement method:
- RMS measurement: Arithmetic mean value
- mounting type:
- DIN-35 rail
- nominal supply voltage us:
- DC 24 V
- number of switching thresholds do:
- 1 or 2 (adjustable)
- operating altitude max:
- 2000 m
- output signal current:
- 0 10 mA: 2 10 mA: 0 20 mA: 4 20 mA (can be inverted (also bipolar))
- output signal type:
- Current || Voltage
- output signal voltage:
- 0 5 V: 1 5 V: 0 10 V: 2 10 V (can be inverted (also bipolar))
- overvoltage category:
- II
- packaging type:
- Bag
- pollution degree:
- 2
- power consumption at nominal supply voltage:
- ¤ 46 mA (+ IDO)
- power supply type:
- 24 VDC
- relative humidity:
- 5 95 % (no condensation permissible)
- resolution current:
- 1 mA (IN 2)
- resolution voltage:
- 30 mV (IN 1)
- response threshold:
- 300 mV (IN 1): 10 mA (IN 2)
- software filter adjustable:
- Moving average value (filter level: 30)
- solid conductor:
- 0.08 2.5 mm / 28 14 AWG
- standards specifications:
- EN 61010-1 || EN 61373
- step response typ:
- 100 ms
- strip length:
- 9 10 mm / 0.35 0.39 inch
- supply voltage range:
- 30 %
- surrounding air temperature operation:
- -40 70 C (at nominal current)
- surrounding air temperature storage:
- -40 85 C
- switching voltage do max:
- Supply voltage (applied)
- temperature coefficient:
- ¤ 0.01 %/K
- temperature range of connecting cable per ul 61010 2 201 min:
- 90 C
- temperature range of the connecting cable according to en 61010 2 201:
- (Tsurrounding air + 10 K)
- test voltage input analog output supply service interface:
- 2.5 kVAC: 50 60 Hz: 1 min
- transmission error max:
- ¤ 0.5 % (of the full scale value)
- weight:
- 39.200 g
- width:
- 6 mm / 0.236 inch
