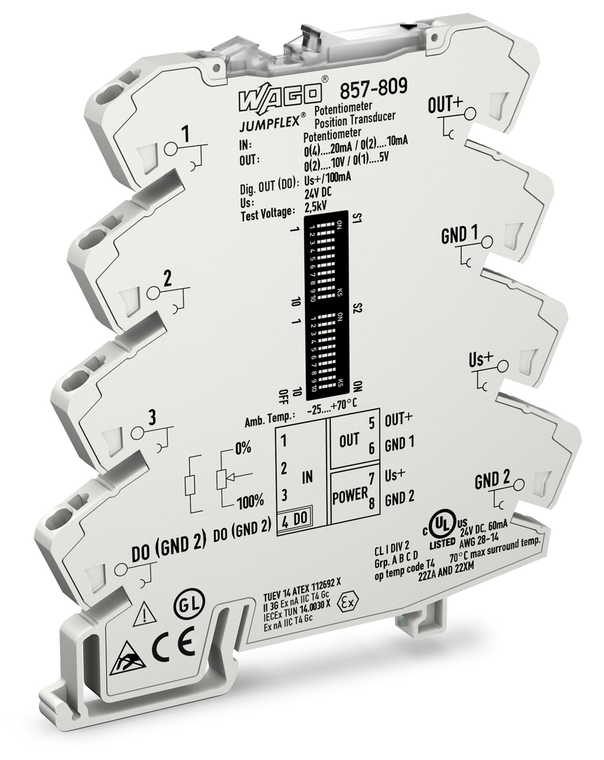

WAGO 857-809

(No reviews yet) Write a Review

Write a Review

Wago

WAGO 857-809

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

8570809

UPC:

MPN:

857-809

Condition:

New

configuration options:

DIP switch || WAGO Interface Configuration Software || WAGO Interface Configuration App || Push/slide switch

conformity marking:

CE

connection technology:

Push-in CAGE CLAMP

continuous current do max:

100 mA (no internal restriction)

country of origin sales organisation germany:

DE

depth from upper edge of din rail:

97.8 mm / 3.85 inch

emc emission of interference:

EN 61000-6-4

emc immunity to interference:

EN 61000-6-2

fine stranded conductor:

0.34 2.5 mm / 22 14 AWG

fire load:

0.000 MJ

height:

94 mm / 3.701 inch

input range potentiometer:

100 100 k

input range resistor:

10 100 k

input signal type:

Potentiometers || Resistor

load impedance current output:

¤ 600

load impedance voltage output:

2 k

measurement range min:

100

mounting type:

DIN-35 rail

nominal supply voltage us:

DC 24 V

note:

Additional setting options via WAGO Interface Configuration Software or WAGO Interface Configuration App

number of switching thresholds do:

1 (adjustable)

operating altitude max:

2000 m

output signal current:

0 10 mA: 2 10 mA: 0 20 mA: 4 20 mA

output signal type:

Current || Voltage

output signal voltage:

0 5 V: 1 5 V: 0 10 V: 2 10 V

packaging type:

Bag

potentiometer supply voltage max:

2.5 V

power consumption at nominal supply voltage:

¤ 40 mA (+ IDO)

power supply type:

24 VDC

relative humidity:

5 95 % (no condensation permissible)

solid conductor:

0.08 2.5 mm / 28 14 AWG

step response typ:

32 ms

strip length:

9 10 mm / 0.35 0.39 inch

supply voltage range:

30 %

surrounding air temperature operation:

-25 70 C

surrounding air temperature storage:

-40 85 C

switching voltage do max:

Supply voltage (applied)

temperature coefficient:

¤ 0.01 %/K

test voltage input output supply:

AC 2.5 kV: 50 Hz: 1 min

transmission error typ:

¤ 0.1 % of upper-range value

weight:

36.600 g

width:

6 mm / 0.236 inch
