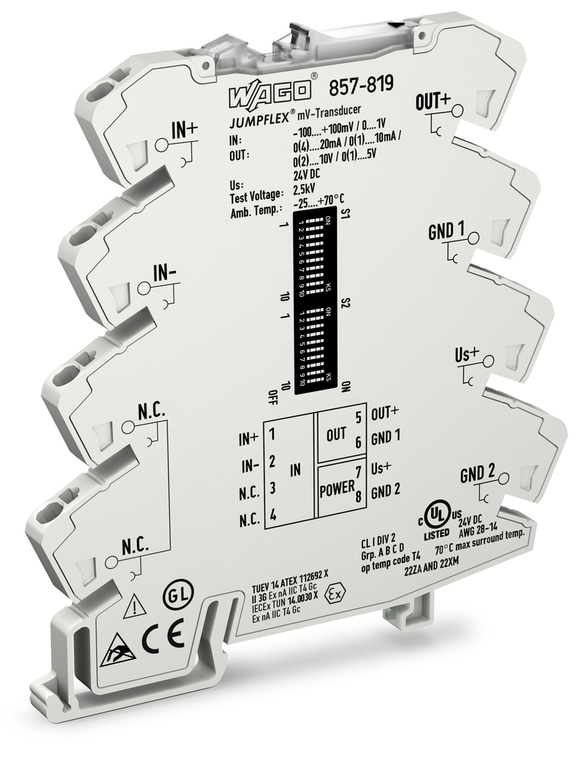

WAGO 857-819

(No reviews yet) Write a Review

Write a Review

WAGO 857-819

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

857-819

UPC:

MPN:

857-819

Condition:

New

configuration options:

DIP switch || WAGO Interface Configuration Software || WAGO Interface Configuration App

conformity marking:

CE

connection technology:

Push-in CAGE CLAMP

country of origin sales organisation germany:

DE

depth from upper edge of din rail:

97.8 mm / 3.85 inch

emc emission of interference:

EN 61000-6-4

emc immunity to interference:

EN 61000-6-2

fine stranded conductor:

0.34 2.5 mm / 22 14 AWG

fire load:

0.000 MJ

height:

94 mm / 3.701 inch

input resistance voltage input:

1 M

input signal type:

Voltage

input signal voltage:

100 mV: 0 200 mV: 0 300 mV: 0 400 mV: 0 500 mV: 0 600 mV: 0 700 mV: 0 800 mV: 0 900 mV: 0 1 V

input voltage max:

31.2 VDC

load impedance current output:

¤ 600

load impedance voltage output:

2 k

measurement span min:

10 mV

mounting type:

DIN-35 rail

nominal supply voltage us:

DC 24 V

note:

Additional setting options via WAGO Interface Configuration Software or WAGO Interface Configuration App

operating altitude max:

2000 m

output signal current:

0 10 mA: 2 10 mA: 0 20 mA: 4 20 mA

output signal type:

Current || Voltage

output signal voltage:

0 5 V: 1 5 V: 0 10 V: 2 10 V

packaging type:

Bag

power consumption at nominal supply voltage:

¤ 40 mA

power supply type:

24 VDC

relative humidity:

5 95 % (no condensation permissible)

solid conductor:

0.08 2.5 mm / 28 14 AWG

step response typ:

50 ms

strip length:

9 10 mm / 0.35 0.39 inch

supply voltage range:

30 %

surrounding air temperature operation:

-25 70 C

surrounding air temperature storage:

-40 85 C

temperature coefficient:

¤ 0.01 %/K

test voltage input output supply:

AC 2.5 kV: 50 Hz: 1 min

transmission error typ:

¤ 0.1 % at full measurement span

weight:

36.314 g

width:

6 mm / 0.236 inch
