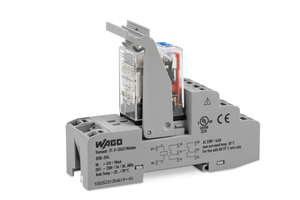

WAGO 858-355 Pack of 5

(No reviews yet) Write a Review

Write a Review

WAGO 858-355 Pack of 5

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

858-355

UPC:

MPN:

Condition:

New

bounce time typ:

4 ms

connection technology:

Push-in CAGE CLAMP

contact material relay:

AgCe + Au

country of origin sales organisation germany:

DE

depth from upper edge of din rail:

73 mm / 2.874 inch

dielectric strength control load circuit ac 1 min:

1.5 kVrms

dielectric strength load load circuit ac 1 min:

1.5 kVrms

dielectric strength open contact ac 1 min:

1 kVrms

drop out time typ:

25 ms

electrical life no resistive load 23 c:

100 x 103 switching operations

fine stranded conductor:

0.34 1.5 mm / 22 16 AWG

fire load:

1.226 MJ

height:

97 mm / 3.819 inch

input voltage range:

-30 +25 %

inrush current resistive max:

(AC) 15 A / 4 s

insulation type adjacent devices:

Reinforced insulation (safe isolation)

insulation type control load circuit:

Basic insulation

insulation type load load circuit:

Basic insulation

limiting continuous current:

0.208333333333333

mechanical life:

20 x 106 switching operations

mounting position:

Horizontal (standing/lying): vertical

mounting type:

DIN-35 rail

nominal input current at un:

42 mA

nominal input voltage un:

DC 24 V

note:

To prevent damaging the gold layer, 30 VDC switching voltages and 50 mA currents must not be exceeded. Higher switching power eventually evaporates the gold layer. The resulting deposits in the housing may reduce service life.

note conductor cross section:

2 x 0.34 2 x 1.5 mm / 1 x 2.5 mm / 2 x 22 2 x 16 AWG

number of changeover switchover contacts:

4

operating altitude max:

2000 m

packaging type:

Box

pollution degree:

2

processing temperature:

-25 +50 C

protection type:

IP20

pull in time typ:

25 ms

rated surge voltage:

2.5 kV

rated voltage:

300 V

recommended minimum load:

5 V / 1 mA / 50 mW

relative humidity:

5 85 %

solid conductor:

0.34 1.5 mm / 22 16 AWG

standards specifications:

EN 61010-2-201 || EN 61810-1 || EN 61373 || UL 508

status indicator:

Red LED || Mechanical

strip length:

9 10 mm / 0.35 0.39 inch

surrounding air temperature operation at un:

-25 70 C

surrounding air temperature storage:

-40 70 C

switching capacity:

AC-15: 1 A / AC 240 V: DC-13: 2 A / DC 24 V

switching power resistive max:

AC 1000 VA: DC (see load limit curve)

switching voltage max:

AC 250 V

wago basic relay:

858-171

weight:

101.300 g

width:

31 mm / 1.22 inch
