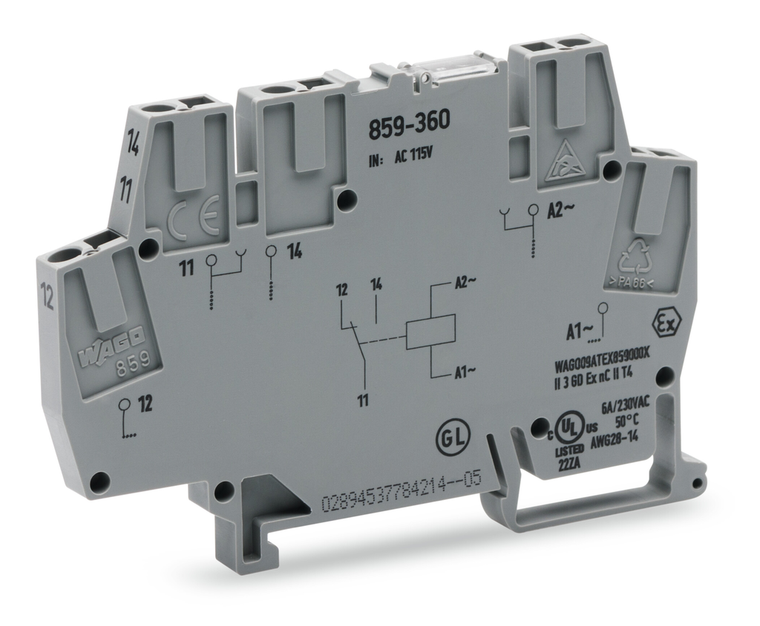

Relay module; Nominal input voltage: 230 VAC; 1 changeover contact; with gold contacts; Red status indicator; Module width: 6 mm; 2,50 mm²; gray.
The WAGO 859 series fixed-type relay module features a red LED and is a single-pole, single-pole double throw (SPDT) relay with a control voltage range of 195.5-253V AC/DC (230V nominal). It has an electromechanical design with a rated current of 50mA at 30V DC (DC-13) to prevent gold flash evaporation. The relay includes CAGE CLAMP connections, is designed for DIN-35 rail mounting with a 6mm width, and uses hard gold-plated silver-nickel (AgNi + Au) contacts. It is equivalent to the model 859359.
- bounce time typ:
- 3.5 ms
- color:
- Gray
- connection technology:
- CAGE CLAMP
- contact material relay:
- AgNi + Au
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 56 mm / 2.205 inch
- dielectric strength control load circuit ac 1 min:
- 4 kVrms
- dielectric strength open contact ac 1 min:
- 1 kVrms
- drop out time typ:
- 30 ms
- electrical life no resistive load 23 c:
- 50 x 103 switching operations
- fine stranded conductor:
- 0.08 2.5 mm / 28 14 AWG
- fire load:
- 0.313 MJ
- height:
- 91 mm / 3.583 inch
- input voltage range:
- -15 +10 %
- inrush current resistive max:
- (AC) 20 A / 0.02 s
- limiting continuous current:
- 0.208333333333333
- mechanical life:
- 5 x 106 switching operations
- mounting type:
- DIN-35 rail
- nominal input current at un:
- 3.5 mA
- nominal input voltage un:
- AC/DC 230 V
- note:
- To prevent damaging the gold layer, 30 V switching voltages and 50 mA currents must not be exceeded. Higher switching power eventually evaporates the gold layer. The resulting deposits in the housing may reduce service life.To protect the relay coils
- number of changeover switchover contacts:
- 1
- operating altitude max:
- 2000 m
- packaging type:
- Box
- pollution degree:
- 2
- processing temperature:
- -25 +50 C
- pull in time typ:
- 15 ms
- rated surge voltage:
- 4 kV
- rated voltage:
- 250 V
- recommended minimum load:
- 1 V / 1 mA / 1 mW
- relative humidity:
- 5 95 % (no condensation permissible)
- solid conductor:
- 0.08 2.5 mm / 28 14 AWG
- standards specifications:
- EN 61010-2-201 || EN 61810-1 || EN 61373 || GL || UL 508
- status indicator:
- Red LED
- strip length:
- 5 6 mm / 0.2 0.24 inch
- surrounding air temperature operation at un:
- -40 50 C
- surrounding air temperature storage:
- -40 70 C
- switching frequency with without load max:
- 6 min-1 / 180 min-1
- switching power resistive max:
- AC 1250 VA: DC (see load limit curve)
- switching voltage max:
- AC 250 V
- weight:
- 24.298 g
- width:
- 6 mm / 0.236 inch
