4-conductor chassis-mount terminal strip; Snap-in feet at pos. 1+3+5; L3-N-PE-L1-L2; with ground contact; 5-pole
Electrical Data
- Rated voltage (III / 3): 500 V
- Rated impulse voltage (III / 3): 6 kV
- Rated current: 32 A
- Legend (ratings): (III / 3) Overvoltage category III / Pollution degree 3
Connection Data
- Connection technology: Push-in CAGE CLAMP<sup></sup>
- Actuation type: Push-button
- Connectable conductor materials: Copper
- Solid conductor: 0.5 4 mm / 20 12 AWG
- Solid conductor, push-in termination: 0.75 4 mm / 18 12 AWG
- Stranded conductor: 0.5 4 mm / 20 12 AWG
- Fine-stranded conductor: 0.5 4 mm / 20 12 AWG
- Fine-stranded conductor with ferrule with plastic collar: 0.5 2.5 mm / 20 12 AWG
- Fine-stranded conductor with ferrule, push-in termination, from: 0.75 mm / 18 AWG
- Strip length: 10 11 mm / 0.39 0.43 inch
- No. of poles: 5
- Total number of connection points: 20
- Total number of potentials: 5
- Type of wiring: Side-entry wiring
- Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross section can also be inserted via push-in termination.
Geometrical Data
- Pin spacing: 12 mm / 0.472 inch
- Width: 60 mm / 2.362 inch
- Height from the surface: 22.3 mm / 0.878 inch
- Depth: 35 mm / 1.378 inch
Mechanical Data
- Mounting type: Snap-in mounting foot
- Marking: L3-N-PE-L1-L2
Material Data
- Color: black
- Fire load: 0.646 MJ
- Weight: 34.766 g
Commercial data
- Packaging type: bag
- Country of origin: DE
- GTIN: 4044918510387
- Customs Tariff No.: 85369010000

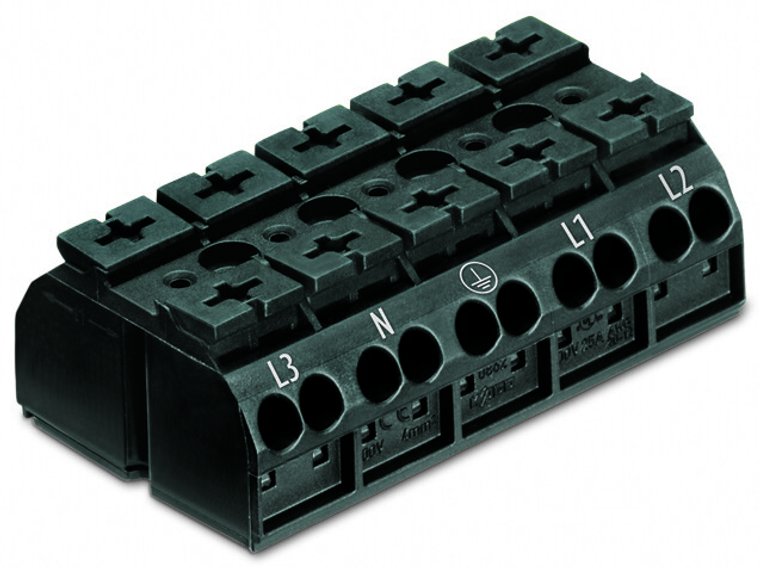

The WAGO 862 series is a black chassis-mount terminal strip featuring feed-through, neutral-through, and ground/earthing connections with a single deck and buttons on both sides. It includes ground contact and is marked "L3-N-PE-L1-L2." The terminal strip supports 3 feed-through poles, neutral-through, and protective-earth (3P+N+PE) connections, accommodating 20 wires (10 push-in + 10 push-in) for wire sizes ranging from 0.5mm² to 4mm² (#20AWG to #12AWG). It has a rated current of 32A and utilizes Push-in CAGE CLAMP spring connections. The unit can be mounted on a DIN rail or surface using an accessory snap-in foot mounting, equivalent to model 8628515.
- actuation type:
- Operating tool || Push-button
- color:
- Black
- connectable conductor materials:
- Copper
- connection technology:
- Push-in CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth:
- 35 mm / 1.378 inch
- fine stranded conductor:
- 0.5 4 mm / 20 12 AWG
- fine stranded conductor with ferrule push in termination:
- 0.75 mm / 18 AWG
- fine stranded conductor with insulated ferrule:
- 0.5 1.5 mm / 20 16 AWG
- fire load:
- 0.646 MJ
- flammability class per ul94:
- V0
- height from the surface:
- 22.3 mm / 0.878 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking:
- L3-N--L1-L2
- mounting type:
- Snap-in foot at pos. 1+3+5
- nominal voltage iii 3:
- 500 V
- note conductor cross section:
- Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- packaging type:
- Bag
- pin spacing:
- 12 mm / 0.472 inch
- pole no:
- 5
- rated current:
- 32 A
- rated surge voltage iii 3:
- 6 kV
- solid conductor:
- 0.5 4 mm / 20 12 AWG
- solid conductor push in termination:
- 0.75 4 mm / 18 12 AWG
- stranded conductor:
- 0.5 4 mm / 20 12 AWG
- strip length:
- 10 11 mm / 0.39 0.43 inch
- weight:
- 34.766 g
- width:
- 60 mm / 2.362 inch
- wiring direction:
- Side-entry wiring
