Wago

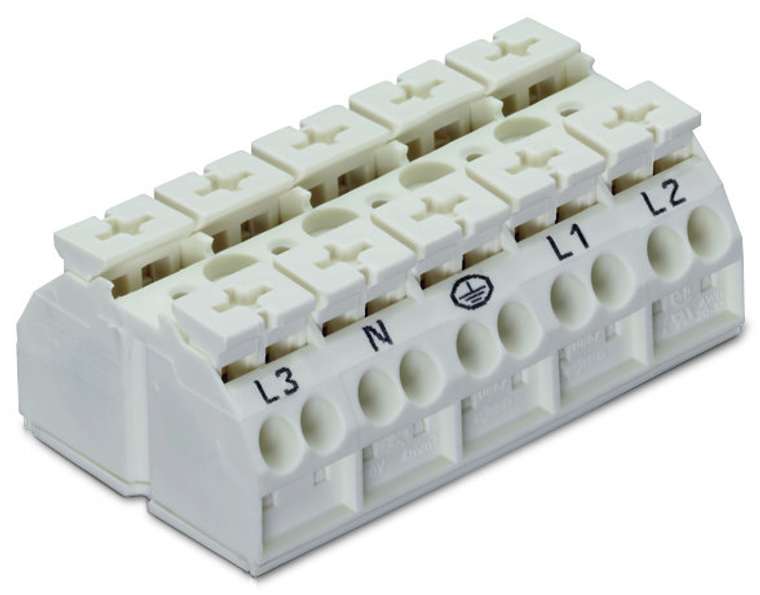

WAGO 862-8625

SKU:

862-8625

UPC:

MPN:

862-8625

Condition:

New

actuation type:

Operating tool || Push-button

color:

White

connectable conductor materials:

Copper

connection technology:

Push-in CAGE CLAMP

country of origin sales organisation germany:

DE

depth:

35 mm / 1.378 inch

fine stranded conductor:

0.5 4 mm / 20 12 AWG

fine stranded conductor with ferrule push in termination:

0.75 mm / 18 AWG

fine stranded conductor with insulated ferrule:

0.5 1.5 mm / 20 16 AWG

fire load:

0.533 MJ

flammability class per ul94:

V0

height from the surface:

22.3 mm / 0.878 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 3) Overvoltage category III / Pollution degree 3

marking:

L3-N--L1-L2

mounting type:

Snap-in foot at pos. 2+4

nominal voltage iii 3:

500 V

note conductor cross section:

Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.

packaging type:

Bag

pin spacing:

12 mm / 0.472 inch

pole no:

5

rated current:

32 A

rated surge voltage iii 3:

6 kV

solid conductor:

0.5 4 mm / 20 12 AWG

solid conductor push in termination:

0.75 4 mm / 18 12 AWG

stranded conductor:

0.5 4 mm / 20 12 AWG

strip length:

10 11 mm / 0.39 0.43 inch

weight:

34.675 g

width:

60 mm / 2.362 inch

wiring direction:

Side-entry wiring
