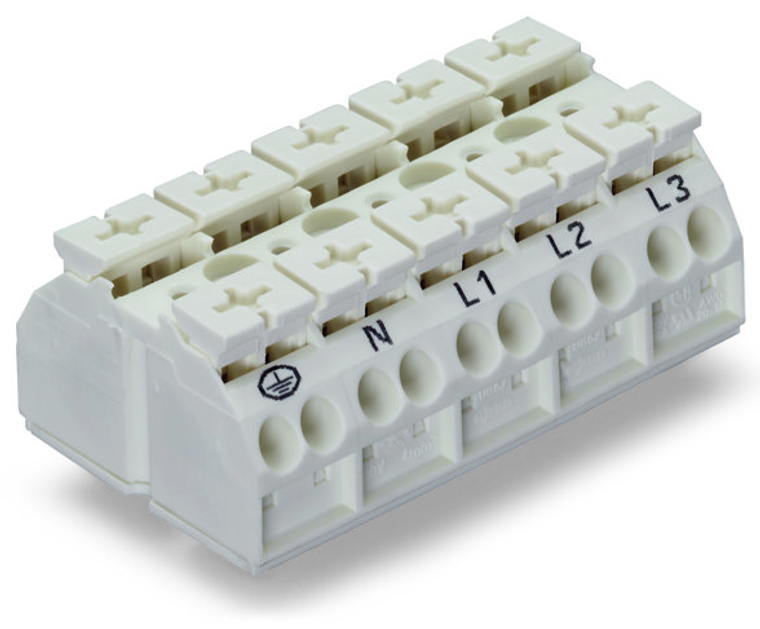

4-conductor chassis-mount terminal strip; with ground contact; PE-N-L1-L2-L3; 5-pole; 4 mm²; 4,00 mm²; white.
The WAGO 862 series is a white chassis-mount terminal strip featuring feed-through, neutral-through, and ground/earthing connections with a single deck and buttons on both sides. It includes one snap-in foot per pole and ground contact, marked "PE-N-L1-L2-L3." The terminal strip has three feed-through poles, a neutral-through, and a protective-earth connection (3P+N+PE), accommodating 20 wires (10 push-in + 10 push-in) for wire sizes ranging from 0.5mm² to 4mm² or #20AWG to #12AWG. It supports a rated current of 32A and utilizes Push-in CAGE CLAMP spring connections. The unit can be mounted on a DIN rail or surface using an accessory snap-in foot mounting, equivalent to model 8629625.
- actuation type:
- Operating tool || Push-button
- color:
- White
- connectable conductor materials:
- Copper
- connection technology:
- Push-in CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth:
- 35 mm / 1.378 inch
- fine stranded conductor:
- 0.5 4 mm / 20 12 AWG
- fine stranded conductor with ferrule push in termination:
- 0.75 mm / 18 AWG
- fine stranded conductor with insulated ferrule:
- 0.5 1.5 mm / 20 16 AWG
- fire load:
- 0.533 MJ
- flammability class per ul94:
- V0
- height from the surface:
- 22.3 mm / 0.878 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking:
- -N-L1-L2-L3
- mounting type:
- Snap-in foot at pos. 2+4
- nominal voltage iii 3:
- 500 V
- note conductor cross section:
- Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- packaging type:
- Bag
- pin spacing:
- 12 mm / 0.472 inch
- pole no:
- 5
- rated current:
- 32 A
- rated surge voltage iii 3:
- 6 kV
- solid conductor:
- 0.5 4 mm / 20 12 AWG
- solid conductor push in termination:
- 0.75 4 mm / 18 12 AWG
- stranded conductor:
- 0.5 4 mm / 20 12 AWG
- strip length:
- 10 11 mm / 0.39 0.43 inch
- weight:
- 34.675 g
- width:
- 60 mm / 2.362 inch
- wiring direction:
- Side-entry wiring
