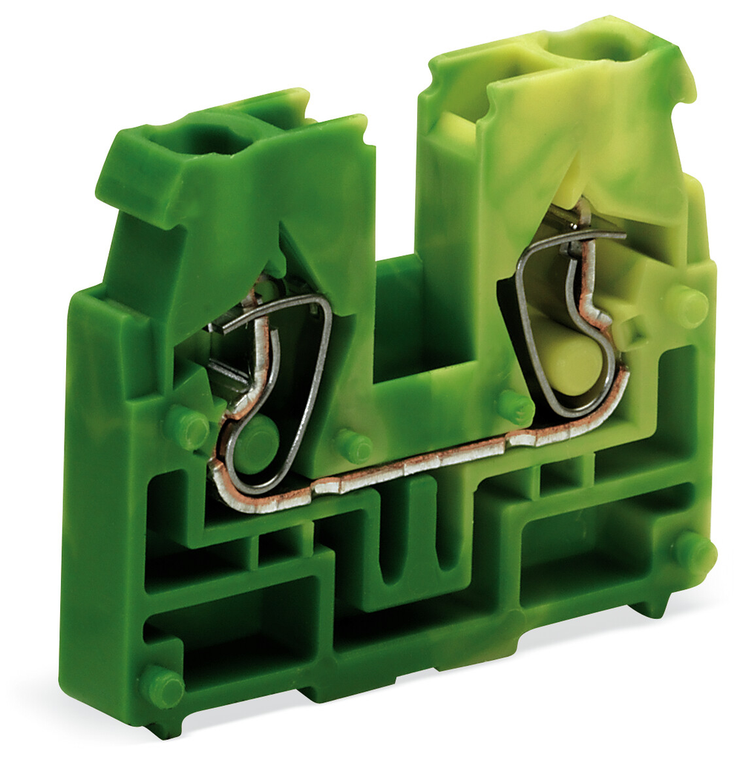

WAGO 869-307 2-conductor end terminal block, green-yellow, 2.5 mm², CAGE CLAMP®, without push-buttons, with fixing flange, for screw or similar mounting types, fixing hole 3.2 mm Ø
Wago
$1.94
2-conductor end terminal block; without push-buttons; with fixing flange; 1-pole; for screw or similar mounting types; Fixing hole 3.2 mm Ã; 2.5 mm²; CAGE CLAMP; 2,50 mm²; green-yellow.
The WAGO 869 series feed-through terminal block is designed for grounding/earthing applications and features a single deck/level with M3 fixing flanges and side marking slots. It is green-yellow in color and supports one grounding/protective-earth (1PE) connection for two wires using one clamp each (1+1). The terminal block accommodates wire sizes from 0.08mm² to 4mm² or #28AWG to #12AWG and utilizes CAGE CLAMP spring connections. It has a 3.2mm fixing hole for mounting and is equivalent to model 869307.
- actuation type:
- Operating tool
- color:
- Green-yellow
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth:
- 33.4 mm / 1.315 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 4 mm / 28 12 AWG
- fine stranded conductor with insulated ferrule:
- 0.08 1.5 mm / 28 14 AWG
- fire load:
- 0.076 MJ
- flammability class per ul94:
- V0
- height from the surface:
- 27.6 mm / 1.087 inch
- marking level:
- Side marking
- mounting type:
- Mounting flange M3
- packaging type:
- Box
- safety information 1:
- Max. insulation diameter: 4.4 mm
- solid conductor:
- 0.08 2.5 mm / 28 12 AWG
- strip length:
- 6 7 mm / 0.24 0.28 inch
- weight:
- 4.173 g
- width:
- 5 mm / 0.197 inch
- wiring direction:
- Front-entry wiring
