WAGO 869-321 2-conductor terminal block; without push-buttons; without snap-in mounting foot; 2.5 mm²; CAGE CLAMP; 2,50 mm²; gray
2-conductor terminal block; without push-buttons; without snap-in mounting foot; 1-pole; 2.5 mm²; CAGE CLAMP; 2,50 mm²; gray.

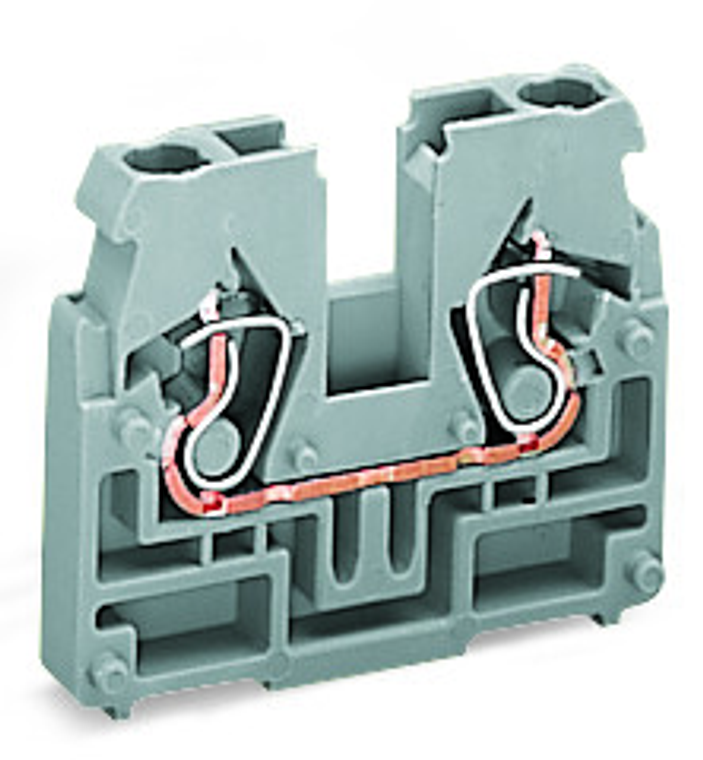

The WAGO 869 series feed-through terminal block is a gray, single-deck component with side marking slots, designed for one feed-through pole and two wires using one clamp each. It accommodates wire sizes from 0.08mm² to 4mm² or #28AWG to #12AWG and supports a rated current of 24A. The terminal block features CAGE CLAMP spring connections and is equivalent to model 869321.
- actuation type:
- Operating tool
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth:
- 33.4 mm / 1.315 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 4 mm / 28 12 AWG
- fine stranded conductor with insulated ferrule:
- 0.08 1.5 mm / 28 14 AWG
- fire load:
- 0.072 MJ
- flammability class per ul94:
- V0
- height from the surface:
- 27.6 mm / 1.087 inch
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Side marking
- nominal voltage iii 3:
- 500 V
- packaging type:
- Box
- rated current:
- 24 A
- rated surge voltage iii 3:
- 6 kV
- safety information 1:
- Max. insulation diameter: 4.4 mm
- solid conductor:
- 0.08 2.5 mm / 28 12 AWG
- strip length:
- 6 7 mm / 0.24 0.28 inch
- weight:
- 4.038 g
- width:
- 5 mm / 0.197 inch
- wiring direction:
- Front-entry wiring
