Description
End terminal block; with fixing flange M4; for screw or similar mounting types; Fixing hole 4.2 mm p>
View AllClose
Electrical Data
- Rated voltage (III / 3): 500 V
- Rated impulse voltage (III / 3): 6 kV
- Rated current: 24 A
- Legend (ratings): (III / 3) Overvoltage category III / Pollution degree 3
Connection Data
- Connection technology: CAGE CLAMP<sup></sup>
- Actuation type: Operating tool
- Connectable conductor materials: Copper
- Solid conductor: 0.08 2.5 mm / 28 12 AWG
- Fine-stranded conductor: 0.08 4 mm / 28 12 AWG
- Strip length: 6 7 mm / 0.24 0.28 inch
- Total number of connection points: 2
- Total number of potentials: 1
- Number of levels: 1
- Type of wiring: Front-entry wiring
Geometrical Data
- Width: 5 mm / 0.197 inch
- Height from the surface: 27.6 mm / 1.087 inch
- Depth: 33.4 mm / 1.315 inch
Mechanical Data
- Design: horizontal
- Mounting type: Mounting flange
- Marking level: Side marking
Material Data
- Color: light gray
- Fire load: 0.076 MJ
- Weight: 4.173 g
Commercial data
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4044918480499
- Customs Tariff No.: 85369010000

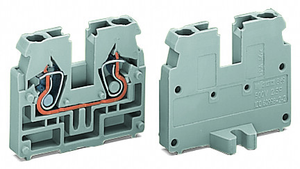

The WAGO 869 series feed-through end terminal block is a light gray, single-deck component with M4 fixing flanges and side marking slots. It features one feed-through pole for two wires, accommodating wire sizes from 0.08mm² to 4mm² or #28AWG to #12AWG, and supports a rated current of 24A. The terminal block uses CAGE CLAMP spring connections and has a 4.2mm fixing hole for mounting, equivalent to model 869359.
