Description
1-conductor/1-pin double deck receptacle terminal block; Through/through terminal block; L/L; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm®; CAGE CLAMPp>
View AllClose
Electrical Data
- Rated voltage (III / 3): 500 V
- Rated impulse voltage (III / 3): 6 kV
- Rated current: 16 A
- Legend (ratings): (III / 3) Overvoltage category III / Pollution degree 3
Connection Data
- Connection technology: CAGE CLAMP<sup></sup>
- Actuation type: Operating tool
- Connectable conductor materials: Copper
- Solid conductor: 0.08 2.5 mm / 28 12 AWG
- Fine-stranded conductor: 0.08 4 mm / 28 12 AWG
- Strip length: 6 7 mm / 0.24 0.28 inch
- Total number of connection points: 2
- Total number of potentials: 2
- Number of levels: 2
- Type of wiring: Front-entry wiring
Geometrical Data
- Width: 5 mm / 0.197 inch
- Height from upper-edge of DIN-35 rail: 40 mm / 1.575 inch
- Depth: 70 mm / 2.756 inch
Mechanical Data
- Design: horizontal
- Type of mounting: DIN-35 rail
- Potential marking: L/L
- Marking level: Side marking
Material Data
- Color: gray
- Fire load: 0.163 MJ
- Weight: 9.106 g
Commercial data
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4045454004446
- Customs Tariff No.: 85366990990

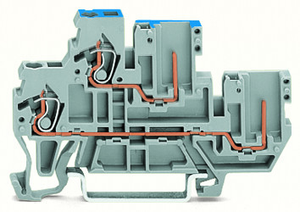

The WAGO 870 X-COM series double-deck feed-through terminal block features side marking slots and is marked "L/L." It has two feed-through poles, accommodating two wires per pole with two clamps and two plug-in pins, suitable for wire sizes ranging from 0.08mm² to 4mm² or #28AWG to #12AWG. The terminal block supports a rated current of 16A and utilizes CAGE CLAMP spring connections along with plug-in pin connections. It is designed for mounting on a DIN-35 rail (35 x 15 / 35 x 7.5) and has a width of 5mm, equivalent to model 870101.
