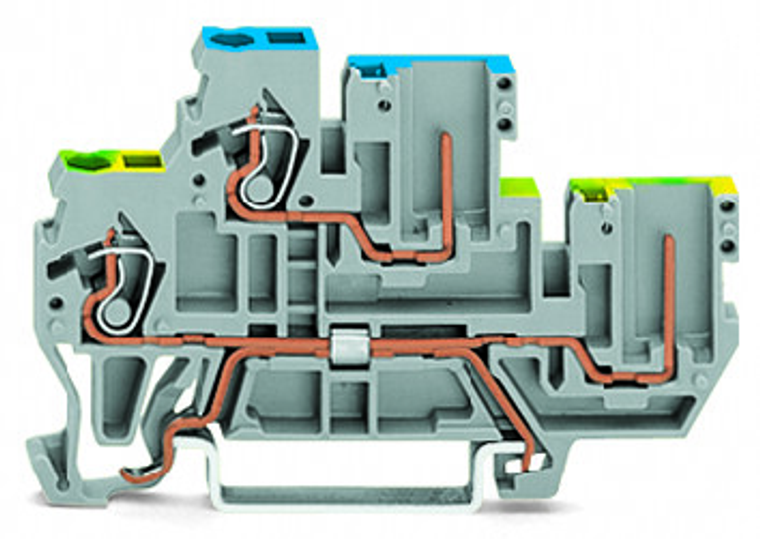

WAGO 870-127 1-Conductor/1-Pin Double Deck Receptacle Terminal Block
Wago
$5.68
1-conductor/1-pin double deck receptacle terminal block; Ground conductor/through terminal block; 2.5 mm²; PE/L; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP; 2,50 mm²; gray.
The WAGO 870 X-COM series double-deck terminal block features a feed-through and ground/earthing terminal with side marking slots labeled "PE/L." It is gray and designed for one feed-through pole plus protective earth (1P+PE), accommodating two wires per clamp and plug-in pin (2+2) for wire sizes ranging from 0.08mm² to 4mm² or #28AWG to #12AWG. It supports a rated current of 16A and utilizes CAGE CLAMP spring connections along with plug-in pin connections. The terminal block mounts on a DIN-35 rail (35 x 15 / 35 x 7.5) and has a width of 5mm, equivalent to model 870127.
- actuation type:
- Operating tool
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 40 mm / 1.575 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 4 mm / 28 12 AWG
- fine stranded conductor with insulated ferrule:
- 0.08 1.5 mm / 28 14 AWG
- fire load:
- 0.163 MJ
- flammability class per ul94:
- V0
- height:
- 70 mm / 2.756 inch
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Side marking
- mounting type:
- DIN-35 rail
- nominal voltage iii 3:
- 500 V
- packaging type:
- Box
- rated current:
- 16 A
- rated surge voltage iii 3:
- 6 kV
- safety information 1:
- Max. insulation diameter: 4.4 mm
- safety information 2:
- 2-conductor female plugs cannot be used.
- solid conductor:
- 0.08 2.5 mm / 28 12 AWG
- strip length:
- 6 7 mm / 0.24 0.28 inch
- weight:
- 10.591 g
- width:
- 5 mm / 0.197 inch
- wiring direction:
- Front-entry wiring
