Tap-off module; modular; suitable for 870 Series terminal blocks with jumper slots in the current bar.

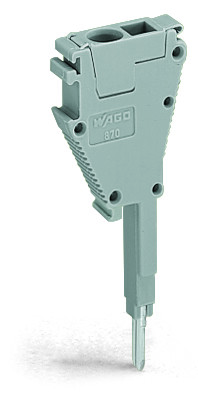

The WAGO 870 X-COM series modular tap-off module is a gray-colored component with CAGE CLAMP spring connections, designed for a rated current of 10A. It has dimensions of 5mm in width and is equivalent to the model 870426.
- color:
- Gray
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- fine stranded conductor:
- 0.08 2.5 mm / 28 14 AWG
- fine stranded conductor with insulated ferrule:
- 0.08 1.5 mm / 28 14 AWG
- fire load:
- 0.028 MJ
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Side marking
- module width:
- 5 mm / 0.197 inch
- nominal voltage iii 3:
- 500 V
- packaging type:
- Box
- rated current:
- 0.416666666666667
- rated surge voltage iii 3:
- 6 kV
- solid conductor:
- 0.08 2.5 mm / 28 14 AWG
- strip length:
- 10 mm / 0.39 inch
- weight:
- 1.751 g
- width:
- 5 mm / 0.197 inch
- wiring direction:
- Front-entry wiring
