Wago

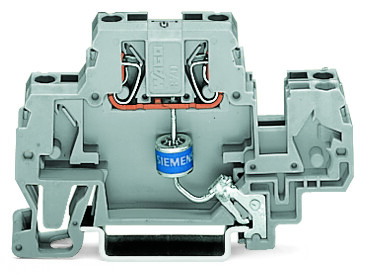

WAGO 870-523/281-580

SKU:

870-523/281-580

UPC:

MPN:

870-523/281-580

Condition:

New

capacitance:

2 pF

color:

Gray

connection points number:

2

connection technology:

CAGE CLAMP

continuous operating voltage max:

AC 180 V / DC 230 V

country of origin sales organisation germany:

DE

depth:

70 mm / 2.756 inch

fine stranded conductor:

0.08 4 mm / 28 12 AWG

fine stranded conductor with insulated ferrule:

0.08 1.5 mm / 28 14 AWG

fire load:

0.000 MJ

flammability class per ul94:

V0

height from upper edge of din rail:

40 mm / 1.575 inch

insulation material:

Polyamide (PA66)

mounting type:

DIN-35 rail

nominal discharge current 8 20 s line:

5 kA

nominal operating voltage:

AC/DC 115 V

packaging type:

Box

protection level 8 20 s:

¤ AC 650 V

rated continuous current:

20 A

solid conductor:

0.08 2.5 mm / 28 14 AWG

strip length:

6 7 mm / 0.24 0.28 inch

weight:

12.200 g

width:

10 mm / 0.394 inch
