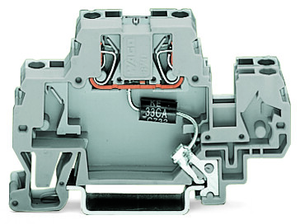

WAGO 870-523/281-581 terminal block with gas-filled surge arrester, 20 A, 230 V AC/DC, 2814 AWG, gray
Wago
$34.43
| Description | Terminal blocks with gas-filled surge arrester; 230 VAC/VDC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Remarks | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Item properties | Miscellaneous
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
The WAGO 870 X-COM series component feed-through terminal block is a double-deck terminal block with a gas-filled suppressor, designed in gray color. It features one feed-through pole and accommodates two wires with one clamp each, suitable for wire sizes ranging from 0.08mm² to 4mm² or #28AWG to #12AWG. The terminal block is rated for 230Vac/230Vdc and 20A, utilizing CAGE CLAMP spring connections for secure wiring. It is mounted on a DIN-35 rail with dimensions of 35 x 15 or 35 x 7.5 and has a width of 10mm, equivalent to model 870523281581.
- capacitance:
- 2 pF
- color:
- Gray
- connection points number:
- 2
- connection technology:
- CAGE CLAMP
- continuous operating voltage max:
- AC 450 V / DC 600 V
- country of origin sales organisation germany:
- DE
- depth:
- 70 mm / 2.756 inch
- fine stranded conductor:
- 0.08 4 mm / 28 12 AWG
- fine stranded conductor with insulated ferrule:
- 0.08 1.5 mm / 28 14 AWG
- fire load:
- 0.000 MJ
- flammability class per ul94:
- V0
- height from upper edge of din rail:
- 40 mm / 1.575 inch
- insulation material:
- Polyamide (PA66)
- mounting type:
- DIN-35 rail
- nominal discharge current 8 20 s line:
- 5 kA
- nominal operating voltage:
- AC/DC 230 V
- packaging type:
- Box
- protection level 8 20 s:
- ¤ AC 1100 V
- rated continuous current:
- 20 A
- solid conductor:
- 0.08 2.5 mm / 28 14 AWG
- strip length:
- 6 7 mm / 0.24 0.28 inch
- weight:
- 12.366 g
- width:
- 10 mm / 0.394 inch
