| Description | Terminal blocks with varistor; 48 VDC | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Remarks | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Item properties | Miscellaneous
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

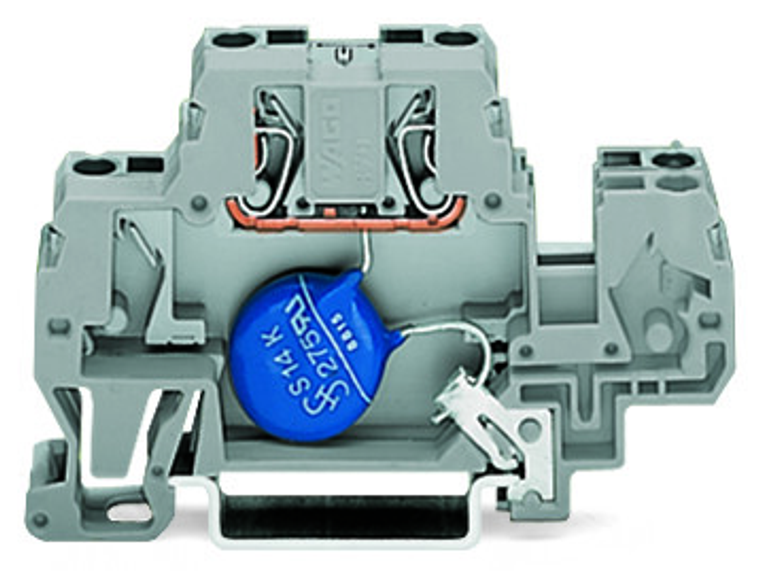

The WAGO 870 X-COM series component feed-through terminal block is a double-deck terminal block with a built-in MOV varistor, designed for use with DIN-35 rail mounting. It features one feed-through pole and can accommodate two wires with CAGE CLAMP spring connections, suitable for wire sizes ranging from 0.08mm² to 4mm² or #28AWG to #12AWG. The terminal block is rated for a voltage of 48Vdc and a current of 20A, with a width of 10mm. It is equivalent to the model number 870523281583.
- capacitance:
- 2.8 nF
- color:
- Gray
- connection points number:
- 2
- connection technology:
- CAGE CLAMP
- continuous operating voltage max:
- DC 56 V
- country of origin sales organisation germany:
- DE
- depth:
- 70 mm / 2.756 inch
- discharge current max:
- 1 kA
- fine stranded conductor:
- 0.08 4 mm / 28 12 AWG
- fine stranded conductor with insulated ferrule:
- 0.08 1.5 mm / 28 14 AWG
- fire load:
- 0.000 MJ
- flammability class per ul94:
- V0
- height from upper edge of din rail:
- 40 mm / 1.575 inch
- insulation material:
- Polyamide (PA66)
- mounting type:
- DIN-35 rail
- nominal discharge current 8 20 s line:
- 300 A
- nominal operating voltage:
- DC 48 V
- packaging type:
- Box
- protection level 8 20 s:
- ¤ DC 135 V
- rated continuous current:
- 20 A
- solid conductor:
- 0.08 2.5 mm / 28 14 AWG
- strip length:
- 6 7 mm / 0.24 0.28 inch
- weight:
- 13.000 g
- width:
- 10 mm / 0.394 inch
