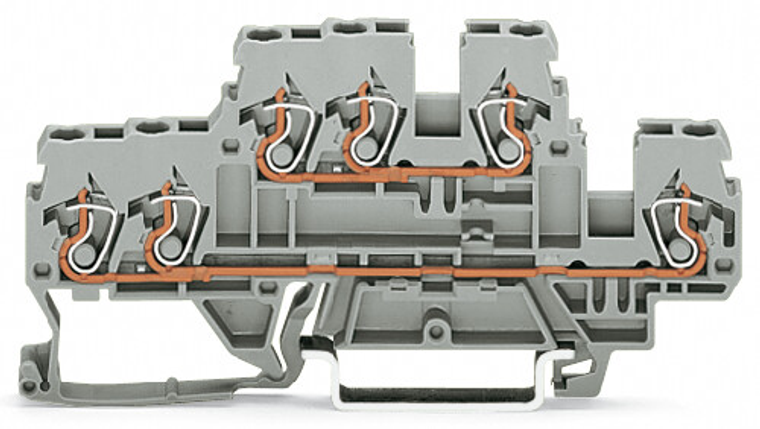

WAGO 870-531 3-Conductor Double-Deck Terminal Block, 6 Ways, 24 A, 500 V

3-conductor, double-deck terminal block; Through/through terminal block; L/L; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm; CAGE CLAMPp>

Electrical Data

• Rated voltage (III / 3): 500 V
• Rated impulse voltage (III / 3): 6 kV
• Rated current: 24 A
• Legend (ratings): (III / 3) Overvoltage category III / Pollution degree 3

Connection Data

• Connection technology: CAGE CLAMP
• Actuation type: Operating tool
• Connectable conductor materials: Copper
• Solid conductor: 0.08 2.5 mm / 28 12 AWG
• Fine-stranded conductor: 0.08 4 mm / 28 12 AWG
• Strip length: 6 7 mm / 0.24 0.28 inch
• Total number of connection points: 6
• Total number of potentials: 2
• Number of levels: 2
• Type of wiring: Front-entry wiring

Geometrical Data

• Width: 5 mm / 0.197 inch
• Height from upper-edge of DIN-35 rail: 40 mm / 1.575 inch
• Depth: 91 mm / 3.583 inch

Mechanical Data

• Design: horizontal
• Type of mounting: DIN-35 rail
• Potential marking: L/L
• Marking level: Side marking

Material Data

• Color: gray
• Insulating material: Polyamide 66 (PA 66)
• Fire load: 0.199 MJ
• Weight: 13.170 g

Commercial data

• Packaging type: BOX
• Country of origin: DE
• GTIN: 4045454094461
• Customs Tariff No.: 85369010000

.

The WAGO 870 X-COM series feed-through terminal block is a double-deck unit with side marking slots and "L/L" marking. It features two feed-through poles, accommodating 2 x 3 wires (4 clamps + 2 clamps), suitable for wire sizes ranging from 0.08mm² to 4mm² or #28AWG to #12AWG. The terminal block supports a rated current of 24A and utilizes CAGE CLAMP spring connections. It is designed for mounting on a DIN-35 rail (35 x 15 / 35 x 7.5) with a width of 5mm, equivalent to model 870531. The unit is gray in color.
