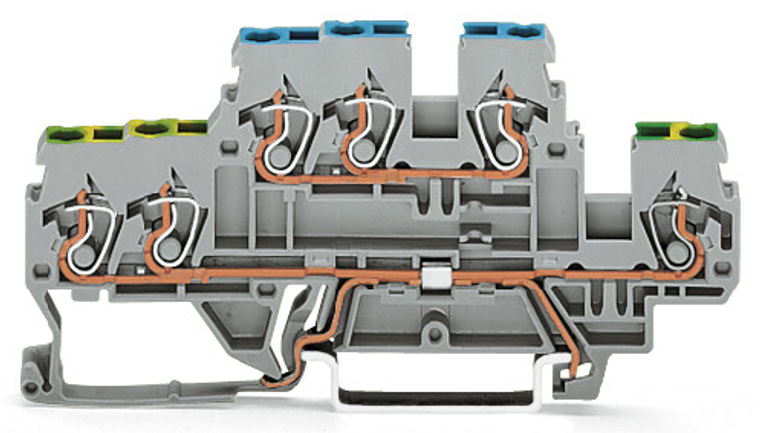

3-conductor, double-deck terminal block; Ground conductor/through terminal block; 2.5 mm²; PE/L; green-yellow conductor entry; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP; 2,50 mm²; gray.
The WAGO 870 X-COM series double-deck terminal block features a feed-through and ground/earthing terminal with side marking slots labeled "PE/L." It is gray and designed for one feed-through pole plus protective earth (1P+PE), accommodating 2 x 3-wires (4 clamps + 2 clamps) for wire sizes ranging from 0.08mm² to 4mm² (#28AWG to #12AWG). It supports a rated current of 24A and utilizes CAGE CLAMP spring connections. The terminal block is mounted on a DIN-35 rail (35 x 15 / 35 x 7.5) and has a width of 5mm, equivalent to model 870536.
- actuation type:
- Operating tool
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 40 mm / 1.575 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 4 mm / 28 12 AWG
- fine stranded conductor with insulated ferrule:
- 0.08 1.5 mm / 28 14 AWG
- fire load:
- 0.204 MJ
- flammability class per ul94:
- V0
- height:
- 91 mm / 3.583 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Side marking
- mounting type:
- DIN-35 rail
- nominal voltage iii 3:
- 500 V
- packaging type:
- Box
- rated current:
- 24 A
- rated surge voltage iii 3:
- 6 kV
- ratings per:
- IEC/EN 60947-7-1
- safety information 1:
- Max. insulation diameter: 4.4 mm
- solid conductor:
- 0.08 2.5 mm / 28 12 AWG
- strip length:
- 6 7 mm / 0.24 0.28 inch
- weight:
- 15.300 g
- width:
- 5 mm / 0.197 inch
- wiring direction:
- Front-entry wiring
