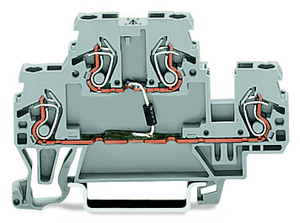

Component terminal block; double-deck; with diode 1N4007; anode, right side; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; CAGE CLAMP; 2,50 mm²; gray.
The WAGO 870 X-COM series component feed-through terminal block is a double-deck terminal block featuring a diode (1N4007) with the anode on the right side and side marking slots. It is gray in color and has two feed-through poles, accommodating four wires with two clamps each. It supports wire sizes from 0.08mm² to 4mm² or #28AWG to #12AWG and is rated for a current of 0.5A. The terminal block uses CAGE CLAMP spring connections and is designed for mounting on a DIN-35 rail (35 x 15 / 35 x 7.5) with a width of 5mm, equivalent to model 870540281411.
- actuation type:
- Operating tool
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 40 mm / 1.575 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 4 mm / 28 12 AWG
- fine stranded conductor with insulated ferrule:
- 0.08 1.5 mm / 28 14 AWG
- fire load:
- 0.177 MJ
- flammability class per ul94:
- V0
- height:
- 70 mm / 2.756 inch
- insulation material:
- Polyamide (PA66)
- marking level:
- Side marking
- mounting type:
- DIN-35 rail
- packaging type:
- Box
- rated current:
- 0.5 A
- ratings per:
- IEC/EN 60947-7-1
- safety information 1:
- Max. insulation diameter: 4.4 mm
- solid conductor:
- 0.08 2.5 mm / 28 12 AWG
- strip length:
- 6 7 mm / 0.24 0.28 inch
- weight:
- 10.181 g
- width:
- 5 mm / 0.197 inch
- wiring direction:
- Front-entry wiring
