Description
Triple-deck terminal block
View AllClose
Electrical Data
- Rated voltage (III / 3): 500 V
- Rated impulse voltage (III / 3): 6 kV
- Rated current: 24 A
- Legend (ratings): (III / 3) Overvoltage category III / Pollution degree 3
Connection Data
- Connection technology: CAGE CLAMP<sup></sup>
- Actuation type: Operating tool
- Connectable conductor materials: Copper
- Solid conductor: 0.08 2.5 mm / 28 12 AWG
- Fine-stranded conductor: 0.08 4 mm / 28 12 AWG
- Strip length: 6 7 mm / 0.24 0.28 inch
- Total number of connection points: 6
- Total number of potentials: 3
- Number of levels: 3
- Type of wiring: Front-entry wiring
Geometrical Data
- Width: 5 mm / 0.197 inch
- Height from upper-edge of DIN-35 rail: 52.5 mm / 2.067 inch
- Depth: 106 mm / 4.173 inch
Mechanical Data
- Design: horizontal
- Type of mounting: DIN-35 rail
- Potential marking: Schirm/N/L
- Marking level: Side marking
Material Data
- Color: gray
- Fire load: 0.275 MJ
- Weight: 18.995 g
Commercial data
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4045454129071
- Customs Tariff No.: 85369010000

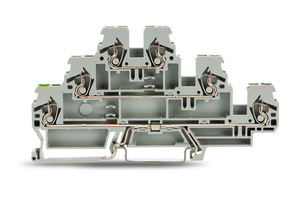

The WAGO 870 X-COM series terminal block is a gray, triple-deck unit designed for feed-through, neutral-through, and shield connections, featuring side marking slots labeled "Shield/N/L." It accommodates 1 feed-through pole, neutral-through, and shield-through connections with three clamps each, suitable for wire sizes ranging from 0.08mm² to 4mm² (#28AWG to #12AWG). Rated for a current of 24A, it utilizes CAGE CLAMP spring connections and mounts on a DIN-35 rail (35 x 15 / 35 x 7.5) with a 5mm width, equivalent to model 870558.
