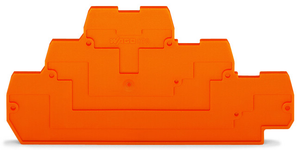

End and intermediate plate; 2 mm thick; orange.
The WAGO 870 X-COM series end and intermediate plate, in orange color and 2mm width, is equivalent to the model 870574.
- actuation type:
- Operating tool
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth:
- 25.1 mm / 0.988 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 1.5 mm / 28 16 AWG
- fire load:
- 0.196 MJ
- flammability class per ul94:
- V0
- height from the surface:
- 17.1 mm / 0.673 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Side marking
- module width:
- 8 mm / 0.315 inch
- mounting type:
- Snap-in foot
- nominal voltage iii 3:
- 400 V
- packaging type:
- Box
- pole no:
- 4
- rated current:
- 18 A
- rated surge voltage iii 3:
- 6 kV
- solid conductor:
- 0.08 1.5 mm / 28 16 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 11.270 g
- width:
- 35 mm / 1.378 inch
- wiring direction:
- Side-entry wiring
