Wago 870-907/999-950

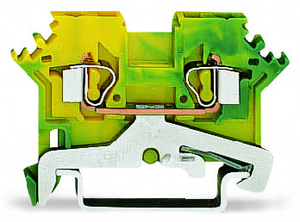

WAGO 870-907/999-950 2-conductor ground terminal block; 2.5 mm²; suitable for Ex e II applications; lateral marker slots; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP; 2,50 mm²; green-yellow

Wago
SKU:
60540588
$7.23
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
2-conductor ground terminal block; 2.5 mm²; suitable for Ex e II applications; lateral marker slots; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP; 2,50 mm²; green-yellow.

The WAGO 870 X-COM series ground/earthing terminal block is designed with a single deck/level and side/lateral marking slots, making it suitable for Ex e II applications. It features a green-yellow color and supports one grounding/protective-earth (1PE) connection for two wires using one clamp each (1+1). The terminal block accommodates wire sizes ranging from 0.08mm² to 4mm² or #28AWG to #12AWG and utilizes CAGE CLAMP spring connections. It is mounted on a DIN-35 rail (35 x 15 / 35 x 7.5) with a 5mm width and is equivalent to the model number 870907999950.

Additional Information
actuation type:
Operating tool
color:
Green-yellow
connectable conductor materials:
Copper
connection technology:
CAGE CLAMP
country of origin sales organisation germany:
DE
depth from upper edge of din rail:
27.5 mm / 1.083 inch
design:
Horizontal type
fine stranded conductor:
0.08 4 mm / 28 12 AWG
fine stranded conductor with insulated ferrule:
0.08 1.5 mm / 28 14 AWG
fire load:
0.067 MJ
flammability class per ul94:
V0
height:
44.5 mm / 1.752 inch
insulation material:
Polyamide (PA66)
marking level:
Side marking
mounting type:
DIN-35 rail
packaging type:
Box
ratings per:
IEC/EN 60947-7-2
safety information 1:
Notice: This ground conductor terminal block cannot be commoned with push-in type jumper bars!
safety information 2:
Max. insulation diameter: 4.4 mm
solid conductor:
0.08 2.5 mm / 28 12 AWG
strip length:
6 7 mm / 0.24 0.28 inch
weight:
8.011 g
width:
5 mm / 0.197 inch
wiring direction:
Front-entry wiring
